Donaldson Torit (DCE) UMA103 K3 Unimaster Dry Dust Control Plant

Stock No
EA1794
Manufacturer
Donaldson Torit (DCE)
Model
UMA 103 K3
Year of Manufacture
1998
Serial
659 510
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
600//1000
Filter Area ft² / m²
100//10
Other Info
Bucket balance ATEX panel Magnahelic
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
262
External Dimensions (WxDxH mm) [?]
1000 x 810 x 2500

Description

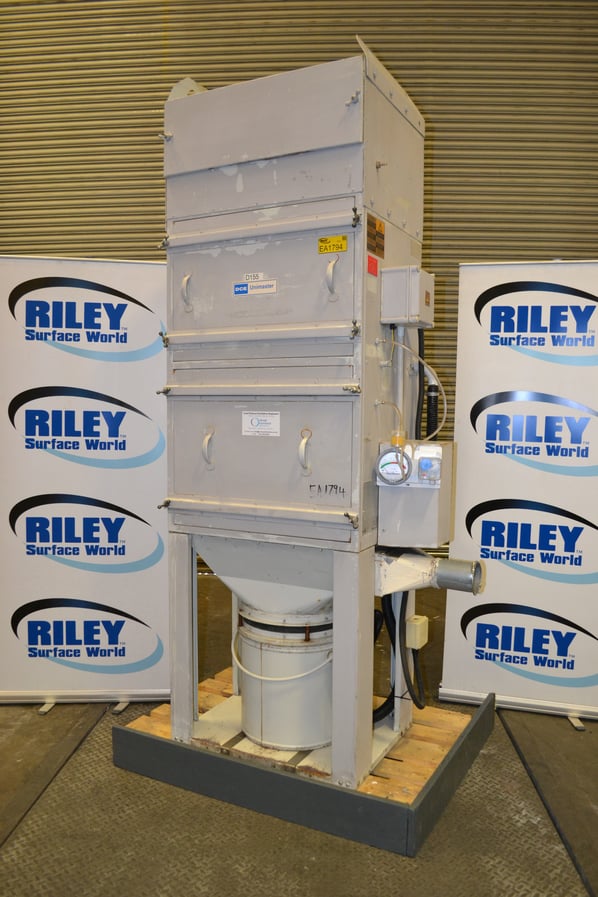

Donaldson Torit Unimaster 103 K3 Dust Collector

This pre-owned Unimaster 103 K3 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.



A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  • Compact Design
  • Minimises floor space and fits in virtually any plant layout.
  • Versatility
  • To suit a variety of dust collection applications
  • Quiet & Efficient Operation
  • Motors and fan are enclosed in collector housing to minimize noise.
  • Easy Maintenance
  • 3cuft collection bucket
  • Quick-Release Lever allows for easy removal and maintenance of bin.
  • Inlet Deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils
  • Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during the cleaning cycle.
  • Secondary HEPA filter (not present. Customer will have to purchase one if required)
  • Fike explosion relief panel
  • Pressure differential gauge
  • Bag-Release Screws allow for easy removal of bags.



pdf icon Print / Download Donaldson Torit (DCE) UMA103 K3 Unimaster Dry Dust Control Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
