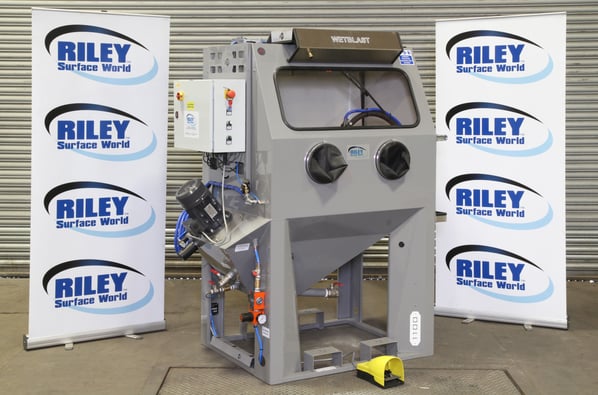

Riley 1100 Heavy Duty Stainless Steel Wet Blast Cabinet with Lining and Turntable

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Condition
Brand New, Current Model

From just £230.25 a month

Finance available 4 years at 3.63% flat rate and VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
SA918
Manufacturer
Riley
Model
1100 Wet Blast
Year of Manufacture
2021
Serial
WB1000/0167
Condition
Brand New, Current Model
Work Envelope (WxDxH mm) [?]
700 x 1100 x 820
Other Info
5yr Cab Warranty. With Lining + t/table
External Dimensions (WxDxH mm) [?]
1540 x 960 x 1960

Description

Riley 1100 "Wet Blast" Wet Blasting Cabinet

Our range of wet blasting machines is designed to simultaneously degrease and blast multiple components.

The process cleans by flow, and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.

These are all 304 stainless steel constructed blast cabinets with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. These features provide extra reliability, life and lower servicing costs.

The pump bodies have been specially designed for minimal wear and longevity, due to the a combination of superior design and materials. They reflect the abrasive away from the surface of he pump thus drastically lengthening the life of the pump body.
In the unlikely event that the pump requires replacement, its price is a fraction of a standard pump.

Typical process is as follows:

  1. The water/media slurry is contained within the wet blasting cabinet sump.
  2. Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hose located inside the wet blasting machine.
  3. Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
  4. After contact with the component, the slurry then drains back into the sump creating a re-circulating system.

Unbeatable Warranty

These blast cabinets include a massive 5 Year warranty on the stainless steel construction.

Electrical, pneumatic and general parts include a 2 year warranty and a 1 year warranty on submersible pump parts.

Features & Benefits

Please note - Video shows previous design before several improvements were made to improve easy of use.

Riley Wet Blast Machines come with an array of standard features

  • Constructed from high quality 2mm 304 stainless steel for a longer service life
  • Fully powder coated in grey or white for easier cleaning and maintenance and corrosion resistance
  • Large front viewing window for excellent operator visibility
  • Automatic windscreen wiper and rinse which is activated with the foot pedal
  • Four anti-shadow LED lights for operator visibility
  • Right hand side door with double media catch trays
  • Media recirculating pinch valve to restrict reusable media going to waste
  • Door open safety switch for operator safety
  • Light weight polyurethane gun
  • Tungsten carbide blast nozzle
  • Component wash off gun for a quick and easy rinse
  • Air blow off gun to dry off components
  • Lined ,heavy duty, rubber gauntlets for operator comfort and safety
  • Pressure regulator with gauge for fine adjustment to blasting pressure
  • Easy reach control panel with large emergency stop button
  • Side mounted pump (1100 & 1250) to allow cabinet to placed back against the wall
  • Valve regulator mounted outside the leg to make maintenance and diagnosis easier
  • Plastic sedimentation tank
  • 3Kw thermostatically controlled sump heater to aid de-greasing with ON/OFF switch
  • 2.2kW media blast pump mounted directly into the sump

Available Models

Model No

Work Area (WxDxH mm)

External Size (WxDxH mm)

Wet Blast 1100

 1080 x 880 x 950

1500 x 950 x 1880

Optional Features

Some of these options can be added to wet blast cabinets we have in stock. Others may require a special order, please contact us to discuss.

  • Rubber lining for rear or sides & rear (included with this machine)
  • Convert to single phase 16 Amp
  • Stainless Steel gun holder
  • Stainless Steel rotating wheel stand
  • Stainless Steel 700mm removable turntable (included with this machine)
  • Closed loop pump system with stainless steel sedimentation tank and filter roll carrier

Service requirements

  • Electrical supply 415v 3 Phase + Neutral
  • Air supply 7 bar (100psi @ 40cfm)
  • Air operating range 2-6 bar (30-80psi)
  • Water Supply 1/2" BSP
  • Drain Floor Level Approx 10 Litres/min
  • Ventilation 4" / 110mm Duct to outside atmosphere.

pdf icon Print / Download Riley 1100 Heavy Duty Stainless Steel Wet Blast Cabinet with Lining and Turntable Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
