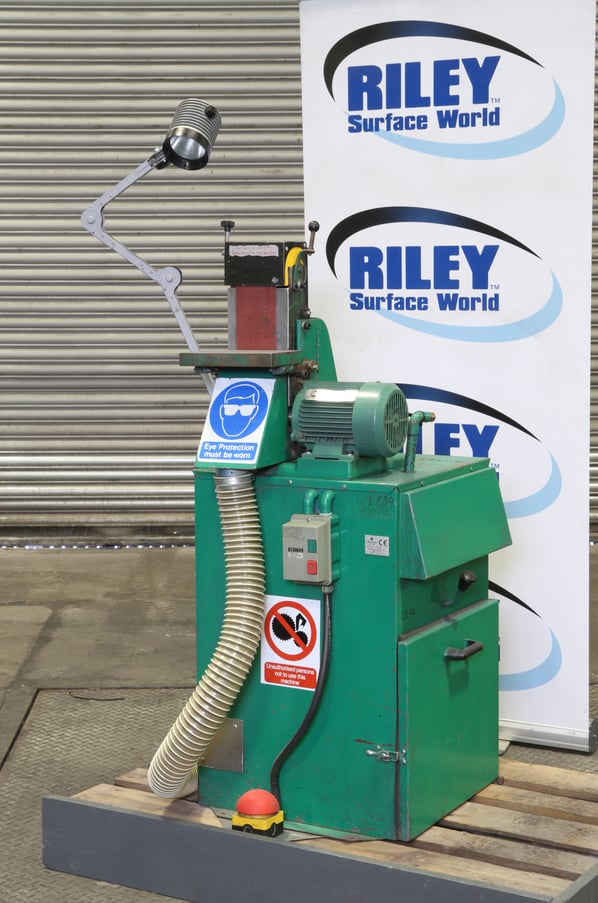

RJH Morrisflex Vertical Belt Linisher Mounted on Dust Collection Plant

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Seen working by RSW, Good Condition, Current Model
Stock No
PA1148S
Manufacturer
RJH Morrisflex
Model
HBB 25
Year of Manufacture
2017
Serial
HBB 25 146
Condition
Seen working by RSW, Good Condition, Current Model
R.P.M.
1400 // 6.5m/sec belt speed
Hp/Kw
1 // 0.75
Other Info
Heavy Duty Horizontal adjust Work Platen
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
750 x 750 x 1300mm

Description

A high-quality, reliable, and extremely safe pedestal-mounted bandfacer designed for general linishing tasks in a maintenance workshop or shop floor environment.

The machine has its own extraction port, fixed vertical platen, belt tensioning system, and table positioning being adjustable horizontally

Standard features include:

  • Quick action table adjustment horizontally only.
  • 150mm/ 6" belt width.
  • Twin thumb screws for belt adjustment.
  • Mounted on dust extraction port.
  • 1 HP motor providing 1400 rpm output speed.
  • Belt - 100 x 915mm.
  • 1hp // 0.75kw.
  • Articulated operator Light.
  • Foot operated E stop.

Former BAE Systems Machinery

This plant is one of several machines acquired during BAE System's reorganisation of their manufacturing facility at Brough, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality aviation and aerospace components,
but can provide a benefit to any industry.

pdf icon Print / Download RJH Morrisflex Vertical Belt Linisher Mounted on Dust Collection Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
