Machines & equipment for sale

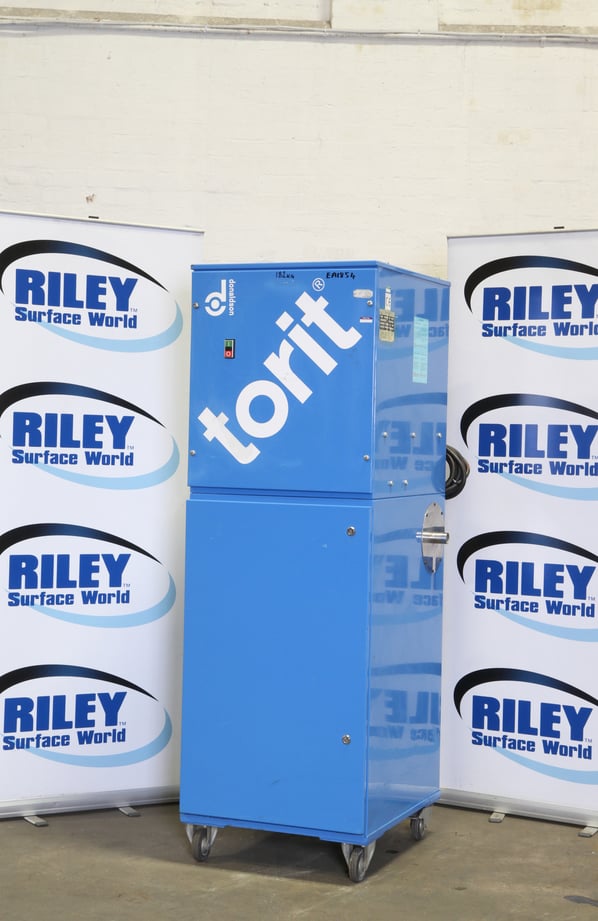

Donaldson Torit (DCE) VS 1500 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Current Model
Stock No
EA1854
Manufacturer
Donaldson Torit (DCE)
Model
vs1500
Year of Manufacture
1997
Serial
261-5507
Condition
Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
1500 // 2500
Filter Area ft² / m²
160ft2 // 16.5M2
Other Info
Shaker Cartridge Model
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
180
External Dimensions (WxDxH mm) [?]
660 x 790 x 1870

Description

Vibra Shake Dust Collector

The Donaldson Torit Vibra Shake is a self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.

Vibra Shake Features

  • Two-stage cartridge for high-efficiency filtration on both coarse and fine dusts.
  • Compact, self-contained collector design allows placement flexibility and saves floor space.
  • Preassembled for easy, low-cost installation—no need for compressed air.
  • Selection of inlet size and location for installation flexibility.
  • Recirculates filtered air saving heating and cooling costs.
  • Provides a cleaner work environment for maximum productivity.
  • Reduces plant maintenance costs.

Vibra Shake cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter life.

  • Filter screen captures coarse and fibrous particles.
  • Submicron particulates pass through the filter screen and are trapped by the inner layer of media.
  • Galvanised outer liner protects filter media.
  • Easy filter changeout for quicker maintenance.

The Donaldson Torit Vibra Shake automatic mechanical self-cleaning ensures the filter cartridge is cleaned every time the unit is shut off. It does an excellent job more cost effectively, and it does it quietly because of heavy-duty construction, special sound-attenuating material, and a vibration isolation motor mount.

Details

  • Integral Fan Housing with 3kW Motor.
  • Shaker Motor 1/8 hp, 115/60/1 TENV.
  • Inlet Collar.
  • Hinged Cartridge Access Door.
  • Prewired Cleaning Control NEMA 12.
  • Prewired Starter Controls.
  • Extraction Arm.
  • Cartridge Filter.
  • Two-Stage Filtration.
  • Coated Interior.
  • Mobility castors.
  • Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance.
  • Epoxy Coating.
  • Dust Drawer Base.
  • Electrical Controls and Enclosure.

pdf icon Print / Download Donaldson Torit (DCE) VS 1500 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
