Machines & equipment for sale

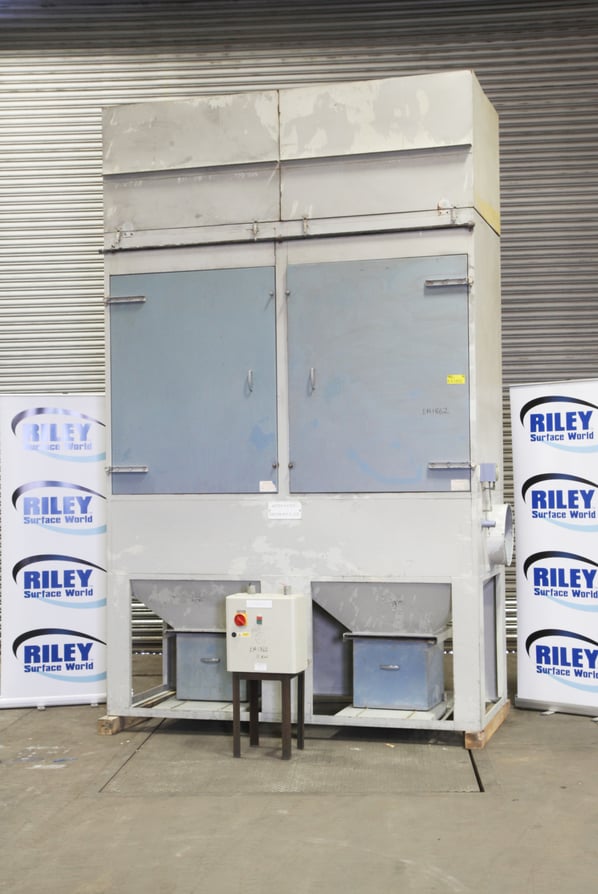

Dust Extraction Int Ltd Heavy Duty Dry Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment
Stock No
EA1862
Manufacturer
Dust Extraction Int Ltd
Model
64M 11Kw
Year of Manufacture
1988
Serial
58490
Condition
From a working environment
Approx Duty CFM / M³/Hr
3500 // 6000
Filter Area ft² / m²
650 // 64
Other Info
2 x 5.5kW (15Hp total extraction power)
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
3020 x 1190 x 3650

Description

64M bag dust collector

Suitable for various applications that generate light to medium volumes of dry dust

The M series is a robust simple mechanically cleaned bag dust collector suitable for non-continuous duty for industrial, commercial and educational locations.

The dust collector is neat, compact, unobtrusive and of a robust weather-proof welded steel design.

Description

The M series is a robust, free standing filter with an automatic shaker cleaning system. It is a model based upon over thirty years of continuous production experience. It was designed for intermittent use, where the filter can stop occasionally for cleaning off line.

The unit has been equipped with dual 5.5kW 7.5Hp motors allowing the unit to run at both 50% and 100% duty when used with multiple extraction points.

Twin explosion relief panels allow the unit to be used with potentially explosive dusts.

Advantages

  • All access for maintenance from the front of the unit
  • Waste dust collection directly to bags or bins
  • Compressed air not required
  • Efficient , automatic, electric  motor driven shaker mechanism
  • Twin 3ft³ quick release dust buckets

Technical specifications

  • Maximum working temperature 80°C
  • Maximum negative pressure 4000 Pa.
  • Maximum positive pressure Accessories: 1500 Pa.
  • Filter areas from 64 m².
  • Wide range of filter materials available to suit most applications.
  • 2 x 5.5 kW Integral, high efficiency fans.
  • Inlet connection of Ø350mm ducting
  • Air silencers
  • Modernised control panel with Fan-shaker timer

pdf icon Print / Download Dust Extraction Int Ltd Heavy Duty Dry Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
