Machines & equipment for sale

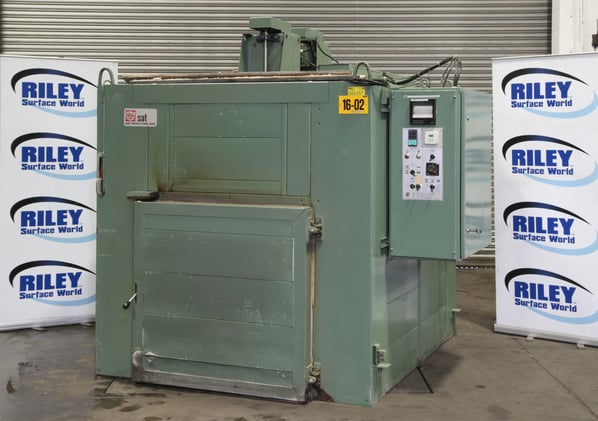

SAT Heavy Duty Electric High Temperature Double Air Circulated Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
OA2257
Manufacturer
SAT
Model
Precision Treaments High Temp’ Batch
Year of Manufacture
1985
Condition
From a working environment, Good Condition, Current Model
Internal Size (WxDxH mm) [?]
1000 x 1750 x 1035
Max Temp
450°C
Other Info
Twin air circulations fans
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1020
External Dimensions (WxDxH mm) [?]
2200 x 2200 x 2260

Description

A second hand SAT Oven,  France's leading supplier of quality ovens and furnaces - An Electric Batch Oven which is suitable for almost any application from simple drying processes to exacting metal treatments.

Sat standard Electric, forced air convection Batch Ovens are suitable for almost any application from simple drying processes to exacting
metal treatments and all types of production work including heavy work loads.

Ideal for heat treatments, temperature soaking, varnish baking, paint stoving, rubber curing, resin bonding and mould heating processes.


General oven specifications

  • Digital control instruments, GEFRAN 1200 controller fitted.
  • Paper chart recorder.
  • Twin roof mounted air recirculation belt driven fans for even temperature uniformity.
  • Front loading swing aside door.
  • Usable internal dimension of 1000 x 1750 x 1035mm.
  • Two 5 tray loading racks.
  • 24 kW Heater loading.
  • External dimensions of 2200 x 2200 x 2260mm.
  • Roof mounted air inlet / outlet for passive ventilation of heated chamber.
  • 415 Volt 50/60 Hz 24kW.

pdf icon Print / Download SAT Heavy Duty Electric High Temperature Double Air Circulated Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
