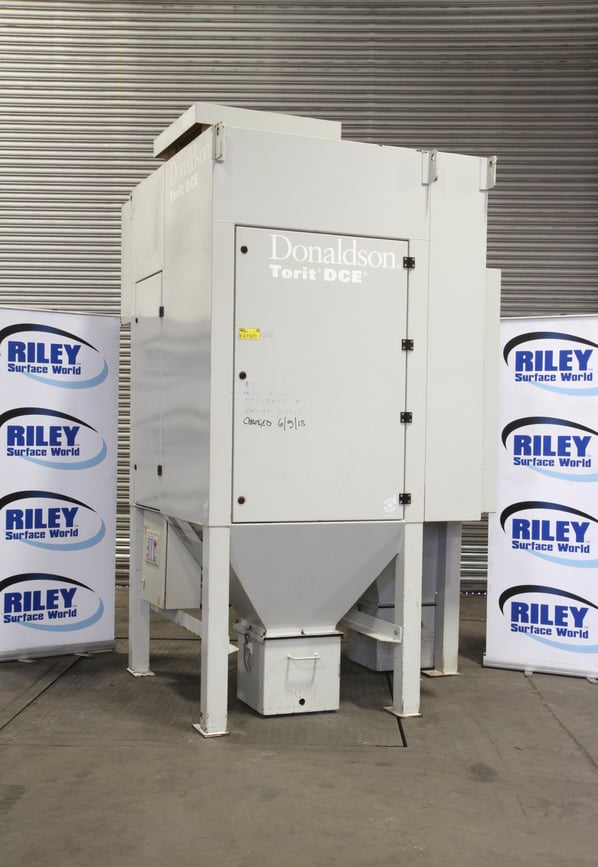

Donaldson Torit (DCE) DF+6 Cyclonic Dust Extraction Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Seen powered at RSW
Stock No
EA1900
Manufacturer
Donaldson Torit (DCE)
Model
DF+6 Cyclo
Year of Manufacture
2003
Serial
53090286
Condition
Good Condition, Seen powered at RSW
Approx Duty CFM / M³/Hr
3200 // 5400
Filter Area ft² / m²
1140.97/106
Other Info
Inlet Cyclonic Pre-Filter
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1250
External Dimensions (WxDxH mm) [?]
1820 x 2170 x 3070

Description

Donaldson Torit (DCE) DF+ 6 Cyclonic Extractor

The DF+6 advantage is found in the collector’s proprietary design and components.

The Cyclo version provides a spark trap, allowing the unit to be used with hot dust from such applications as flame spraying, fettling, metal linishing , laser and plasma cutting and foundry extraction.

The dusts are filtered the cleaned into a base mounted dust collection bucket

DF+6 Cyclo Offers:

  • Lower initial cost per cubic foot of air per minute (cfm)
  • Higher efficiency—cleaner air
  • Spark Trap with collection bucket.
  • Integral 5.5kW fan unit
  • Lower pressure drop—greater energy savings
  • Fewer filter changeouts
  • Reduced filter disposal cost
  • Easy system setup
  • Less maintenance
  • Easy to use, Quick-release handle provide easy cover removal and faster filter access.
  • Compact, Smaller footprints for applications that require maximum cleaning efficiency in even smaller spaces.
  • Powerful, The proprietary ExtraLife Filter Cleaning System averages up to 30 percent increase in pulse cleaning energy for unmatched cleaning ability.

415v 3Ph 50Hz 5.5 Kw / 7.5Hp
230 VAC Control - DOL fan
24 volt AC pulse control voltage

Filters 6 off 262-5025-17806

Full set of electrical drawings

What are Cartridge Dust Collectors?

Cartridge Dust Collectors a type of filter unit which is predominantly used in environments where space is at a premium. They can often maintain airflows which remain comparable to larger baghouse units.

Cartridge units provide larger fabric filter areas into a smaller place, use less filters and can be changed from the outside of the extractor, rather than having to access the unit internally, thus reducing filter replacement times and less environmental contamination issues for maintenance staff.

They are ideal for commercial and industrial environments, whose processes produce very fine-to- moderate dust-like powders, metalworking, woodworking, fume collection, thermal spraying, among other processes.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

What are Reverse Pulse Jet Dust Collectors?

Reverse Pulse Jet Dust Collectors use a jet of air to clean dust from the collector's filters. Commonly used in pleated filter cartridge units, the filters are cleaned by a series of rapid, high-pressure air jets which sends a blast or shock of air through the reverse side of the filters. In effect this shakes the collected dust from the filters into the dust collection system. The rapid reverse pulse of air allows for continuous operation with the fan running and has high collection efficiencies.

Reverse Pulse Jet Dust Collectors are the most common type of industrial dust collectors and can handle a wide range of temperatures and pressures. They are commonly used in manufacturing environments where large volumes of solids are processed, such as mineral production, food processing and metal fabrication industries.

A control unit sets the variables such as time duration between pulses, length of pulse and pressure.

pdf icon Print / Download Donaldson Torit (DCE) DF+6 Cyclonic Dust Extraction Unit Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
