Plymovent Mistwizard 3 Stage Oil Mist Filter System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EB1934
Manufacturer
Plymovent
Model
FUA 1800 435
Serial
00513921702
Condition
Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
588//1000
Filter Area ft² / m²
107.6//10
Other Info
Self Contained Centrifugal Exhaust Fan
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
60
External Dimensions (WxDxH mm) [?]
880 x 570 x 2730

Description

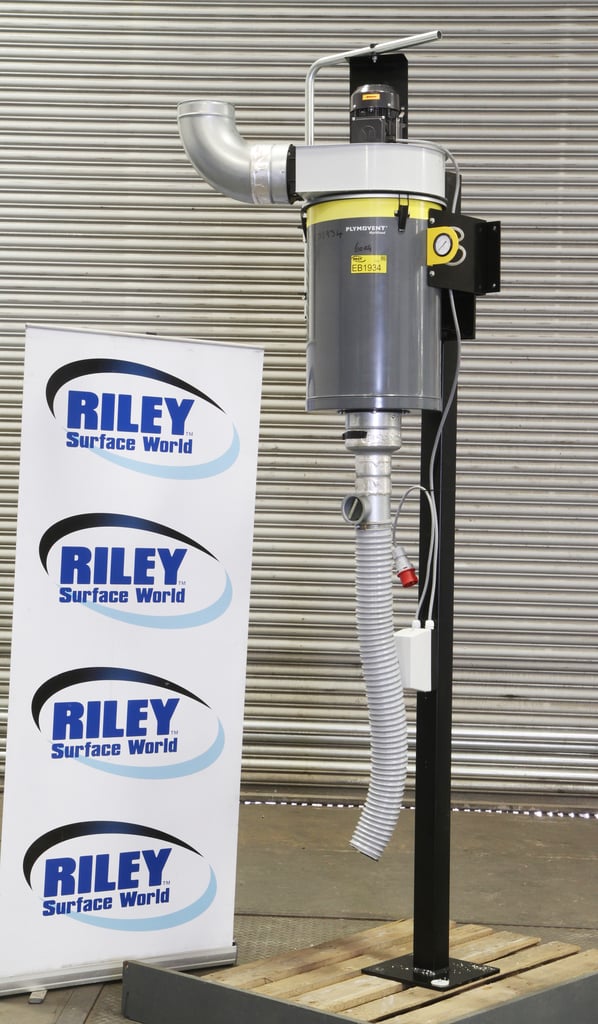

MistWizard is designed to be directly mounted on a machine tool with no need for ducting or use of additional floor space. This unit has been mounted on a stand and can be connected via hoses to suit the application. The filter will effectively collect the coolant mist and smoke from the machine process and return the recovered coolant back to the machine tool. The filter unit is provided with a range of options to allow easy, fast installation.

Three step filter system

  • Stage 1: Aquaspin™ inlet, for larger droplets.
  • Stage 2: Polyester filter wrap for the capture of particles and dust.
  • Stage 3: Polyester washable oleo phobic filter cartridge.

Application

  • A small extraction system for v oil mist and dust.
  • Plymovent MistWizard™ is a highly effective mechanical filter for filtration of oil mist. It is designed to handle oil mist from both emulsions and straight metalworking fluids (MWF). The collected MWF can be re-used or disposed.

Features

  • Efficient filtration of oil mist and fumes
  • Low installation cost
  • Low noise level
  • Low energy consumption
  • Direct mount, dedicated filter unit for one machine tool
  • Low operation cost
  • FUA1800 Fan
  • Rotational outlet
  • DOL Start

Materials

  • Fan: aluminium
  • Housing: sheet metal

Do not use the FUA for the following applications

  • Aluminium laser cutting
  • Extraction of aggressive fumes and gases (e.g. from acids, alkaline or soldering paste containing lithium)
  • Extraction of hot gases (more than 80°C continuously)
  • Grinding aluminium and magnesium
  • Flame spraying
  • Extraction of cement, saw dust, wood dust, etc
  • Explosive environments or explosive substances/gases





pdf icon Print / Download Plymovent Mistwizard 3 Stage Oil Mist Filter System Datasheet

Additional files

Sales BRO.

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
