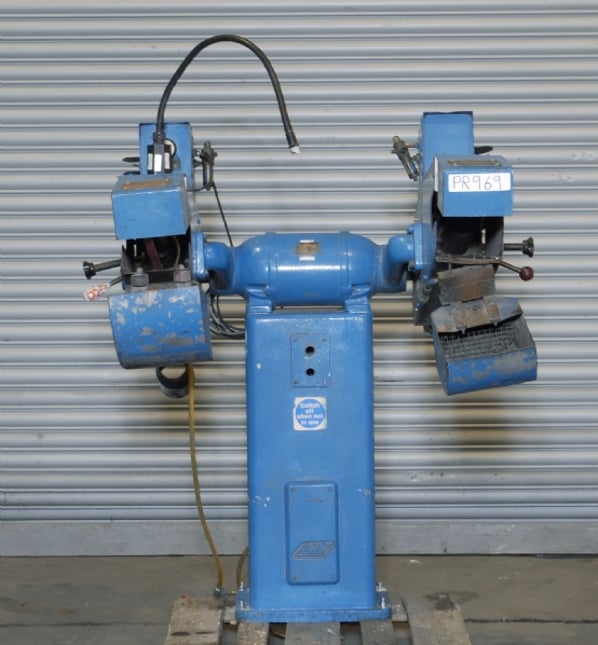

Greif Double Arm, Rear Driven, Idling Contact Roll Linisher

Stock No

PR969

Manufacturer

Greif

Model

DV-30-2-2

Serial

179290

R.P.M.

2850

Hp/Kw

2.5kw / 3Hp

Other Info

German Build Quality

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

212kgs

External Dimensions (WxDxH mm) [?]

1010 x 1800 x 1400mm

Delivery

Your delivery options

Description

Heavy duty space saving twin belt linishing machine, complete with forward facing adjustable angle arms with full guarding and adaptable contact wheels.

The DV-30 offers enhanced flexibility as it can be fitted with a wide range of contact wheel and belt sizes, including small and miniature contact wheels which It is particularly suited to turbine blade processing industries.

Pnuematic belt tensioning and manual belt tracking facility.
Max belt width 75mm.

Details

2.5kW motor,
Max belt width 75mm
3ph-50hz-415volts, 5.0A, A.C.

Print / Download Greif Double Arm, Rear Driven, Idling Contact Roll Linisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
