Nederman Spark Arrestor Box

Stock No

EU1420C

Manufacturer

Nederman

Model

Spark trap box

Approx Duty CFM / M³/Hr

3500 // 6000

Filter Area ft² / m²

N/A

Other Info

350mm Dia Inlet/Outlet

Location

Our Central Warehouse, Aldridge, UK

External Dimensions (WxDxH mm) [?]

820 x 820 x 1130

Delivery

Your delivery options

Description

Nederman In-line spark traps reduce the possibility of fire by knocking down sparks from the airstream before they can enter your dust collection unit.

The dust laden air enters the spark trap and expands reducing the velocity and allowing the heavier particles to separate.

The air is then directed downwards by a deflection plate and impinged upon a bed of water contained within the catchment tray.

This helps extinguish the sparks before the air passes through to the secondary chamber and on to your extraction source.

The collection bin is then emptied at regular periods and the water within replenished.

Print / Download Nederman Spark Arrestor Box Datasheet

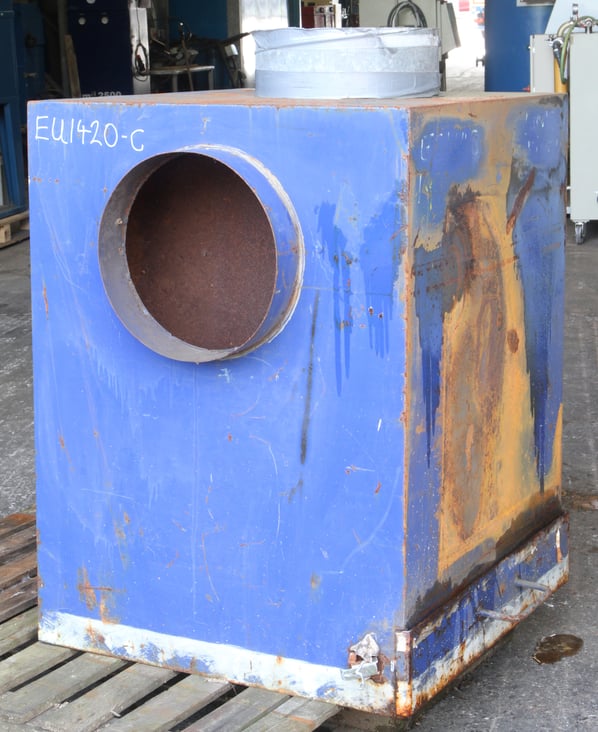

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
