Riley DFRPC Down Flow Reverse Pulse Cleaning Dust Extractor Range

New

Price [?]
Please call on +44 (0) 1922 45 8000
Guarantee
1 year manufacturer guarantee
Availability
Available for immediate collection
Condition
Brand New
Stock No
NEW100
Manufacturer
Riley
Model
DFRPC
Condition
Brand New
Approx Duty CFM / M³/Hr
5,600m3/h - 11,200m3/h
Filter Area ft² / m²
184 m2 - 282 m2
Delivery
Your delivery options

Description

Down Flow Reverse Pulse Cleaning (DFRPC) Range

Having been in the surface finishing industry as a supplier of quality used plant and equipment for over 50 years we have seen the full spectrum of machines on offer from all of the major suppliers all over Europe. Having seen the best available, we now have a a design that incorporates features that we believe will rival any of the current extractors available on the market today and at a very competitive price.

Many industrial applications will produce dust which needs to be extracted and filtered accordingly. All of our dust extraction systems are made in the UK and can be tailored to meet your specific needs.

The DFRPC delivers optimum performance and is one of the best value dust collectors available in today’s marketplace.

Each unit is pressure tested after welding to ensure the integrity of the welded unit.

Benefits

  • Built in the United Kingdom using only the best of components available.
  • Made from fabricated and welded heavy duty 4 mm carbon steel.
  • Unit mounted and free standing fan sets tailored to make best use of the available space.
  • Ledge less construction and angled filters eliminates dust build up.
  • Compact design minimises floor space.
  • Powerful performance filter cartridge technology.
  • Cleaning system that provides 30% more cleaning energy.
  • Cost savings from fewer filter changes, reduced filter disposal costs, and less energy usage.
  • Easy system set up.
  • Easy for maintenance.
  • Inlet shrouds to prevent direct impingement onto the top tier of the elements.
  • Dust containers or screw conveyor/rotary airlock dust discharge options available.
  • A complete range of instrumentation and control gear to suit every process requirement.
  • Can be supplied in any colour combination to meet your corporate Identity with hard wearing and durable powder coated paint finish.

Modular Construction

Having three basic designs, two module high, three module high and four module high, a large range of capacities can be achieved by simply coupling together any combination of extraction units together with common inlet and outlet manifolds offering not only a wide range of capacities but also dutied systems with independent fans for multi point extraction systems.

The advantage of sharing a common design, allows any installed system to be expanded at any time as and when it may be required.

Reverse Pulse Dust Extractor Features

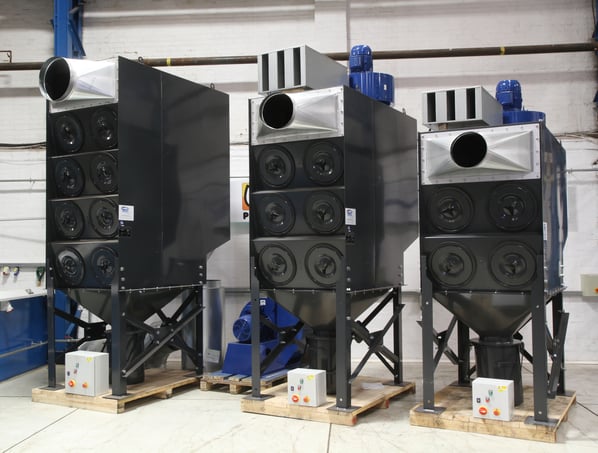

Available Models

The DFRPC range is available with three core sizes, each with a range of fans to match duty requirements. Additionally each model can be combined with further units in parallel to provide additional capacity or standby configurations.

Model NoWeightNumber of CartridgesMedia AreaLengthWidthHeight
DFRPC 2-8 1220kg875m²1020mm2275mm3280mm
Paired withFanExtraction range m³/hrExtraction CFM
 5.5 kW56003300
Model NoWeightNumber of CartridgesMedia AreaLengthWidthHeight
DFRPC 3-121720kg12113m²1021mm2275mm3513mm
Paired withFanExtraction range m³/hrExtraction CFM
 5.5 kW56003300
 7.5kW84004950
 11kW112006600
Model NoWeightNumber of CartridgesMedia AreaLengthWidthHeight
DFRPC 4-162130kg16150m²1021mm2275mm4996mm
Paired withFanExtraction range m³/hrExtraction CFM
 7.5kW84004950
 11kW112006600

Options

  • Combined units for additional capacity or standby (e.g. three DFRPC 3-12 units combined to give 36 cartridges).
  • A range of filters to suit your application

Industrial Cartridge Filter Design

Our dust extractors can filter highly contaminated volumes of air. The dust-laden waste gases enter through the inlet by vacuum or pressure. The gases are then filtered through the cartridges and exit through the vents into the clean air to be either be channeled outside or re-circulated depending on the application in hand. Our dust extraction filters are easily changed from the front of the unit, and they can also be offered in a non-woven material for those applications where non-woven cartridge filters are suitable.

The use of downward airflow and an inclined filters has resolved the problem of dust retention on the upper surface of the filters. It also enables a more compact cartridge filter design and enhanced cleaning efficiency as every element is cleaned by its own pulse valve instead of rows of elements cleaned by a jet pipe arrangement.

A ledge less hopper in combination with proprietary Nanofibre filter media and reverse pulse cleaning technology, offers strong performances in traditional applications such as metal and wood working, which all adds up to long-term savings and improved performance in most applications.

Our industrial cartridge filters are always in stock and available for immediate supply and installation. For special purpose machines or non stocked versions we offer an exceptional turnaround and can offer build times in as little as three weeks.

Industrial Cartridge Filters

Riley's DFRPC dust extractors have an extensive range of cartridge filters available to suit most applications. These dust extractor cartridge filters are technically advanced in design to give you the cleanest of returned air. The cartridges being cleaned by compressed air makes the system highly efficient. Cartridge filters can save up to 40% on space in comparison to conventional multi-pocket or tubular bag type extraction systems.

Pleated Cartridge Filter
Pleated Cartridge Filter elements were originally designed and developed for use as truck air intake filters. The media was very simple folded and pleated paper and they served that purpose very well. In the mid 1980's the dust control industry recognized their potential use for low dust loaded non arduous dust collector applications.

Cartridge Dust Filters
The wider application of Cartridge Dust Filters in the 1990's forced the development of sophisticated technical medias to allow the design to be applied to a much wider range of duties. These units are now developed to a point where they offer a very low cost solution to a very wide range of dust control applications.

Cartridges Typically Available

Spun Bonded Filter Cartridges

660 X 352 - 9.4 m²

  • Spun Bonded Polyester
  • Spun Bonded Polyester (ANTISTATIC)
  • Spun Bonded Polyester (FULL PTFE MEMBRANE)

Cellulose Filter Cartridges

660 X 350 - 23 m²

  • Cellulose
  • Cellulose (FR)

Nanoweb Filter Cartridges

660 X 350 - 23 m²

  • Nanoweb (FR) for plasma cutting applications

Modular Construction

Having three basic designs, 2 module high, three module high and four module high, a large range of capacities can be achieved by simply coupling together any combination of extraction units together with common inlet and outlet manifolds offering not only a wide range of capacities but also dutied systems with independent fans for multi point extraction systems .

The advantage of sharing a common design, allows any installed system to be expanded at any time as and when it may be required.

Options
- Combined units for additional capacity or standby (e.g. three DFRPC 3-12 untis combined to give 36 cartridges.
- A range of filters to suit your application
