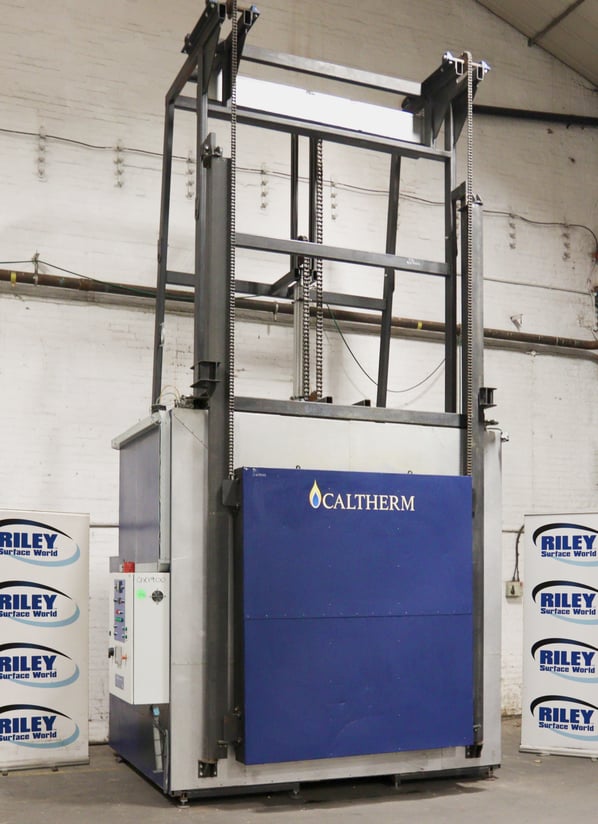

Caltherm 300°C AMS2750 Class 1 ±3°C Multipurpose Heat Treatment Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Seen working by RSW, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
OX1900
Manufacturer
Caltherm
Model
AMS 2750 Class 1 ± 3°C -
Year of Manufacture
2012
Serial
J7154.E12.11
Condition
Seen working by RSW, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
1700 x 900 x 1900
Max Temp
300°C
Other Info
Conforms to AMS2750 Standard
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
3300 x 3150 x 6450
Delivery
Your delivery options

Description

Caltherm have been a world-class designer and manufacturer of industrial ovens for thermal processing applications for over 30 years. This Caltherm multipurpose heat treatment oven has a temperature uniformity of ± 3°C to AMS2750 class 1 standards.

Including features such as vertical door easy loading-reduce space, Caltherm's reputation for thoughtful, innovative design and robust construction make their ovens a in demand among heat treatment applications across industries. Customers supplied include many of the most prestigious names in the aerospace and automotive industries, electrical and engineering, composite, rubber and plastics manufacturers, glass and pharmaceutical firms.

The oven on offer is a 300°C AMS 2750 Class 1 oven with a tolerance of ± 3°C, and having internal dimensions of 1700mm x 900mm x 1900mm.

Designed with innovative features such as:

  • Rocking frame door closure for a tight chamber air seal with minimal wear.
  • Inbuilt cooling facility.
  • Light guard protected work zone in front of oven.
  • Large slow air circulation fan for good uniformity with little air disturbance.
  • External air pulled in via HEPA filters
  • The comprehensive control panel incorporates a Eurotherm 3504 programmable main controller.
  • Eurotherm 3216 over temperature monitor and a Chessel 6100A graphical data logger.
  • Forced air extraction mounted to the roof.
  • Explosion relief panel.

It has only been used lightly for the application on composite paint curing to technical parts.

Common Heat Treatments That Use Industrial Ovens & Furnaces

Heat treatment is a controlled process of heating and cooling materials in order to improve its properties, performance, and strength typically made up of three main steps. Firstly heating the metal to a specific temperature, soaking or maintaining the specific temperature for a certain amount of time, and cooling to a suitable rate following prescribed methods.

There are seven main techniques used for the heat treatment of materials, and all affect material in different way. These techniques are:

  1. Normalising
  2. Annealing
  3. Tempering
  4. Hardening
  5. Ageing
  6. Stress Relieving
  7. Carburisation

pdf icon Print / Download Caltherm 300°C AMS2750 Class 1 ±3°C Multipurpose Heat Treatment Oven Datasheet

Additional files

Operating Manual and Electrical Drawings

Certificate of Uniformity

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
