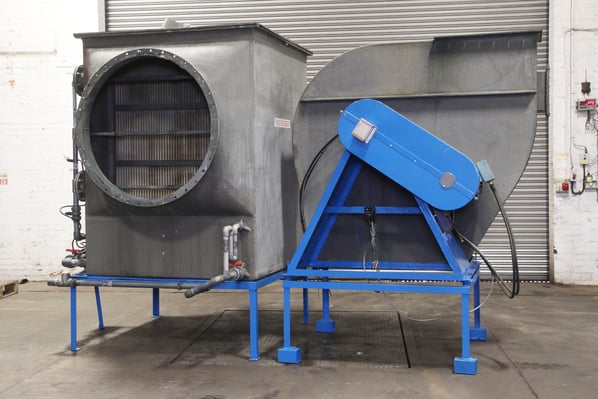

Plasticraft Horizontal Fume Eliminator with Matching Centrifugal Fan
- Stock No
- FY120
- Manufacturer
- Plasticraft
- Model
- Vaned Eliminator
- Condition
- Good Condition
- Approx Duty CFM / M³/Hr
- 12,000 14,000 // 21,000 - 24,000
- Filter Area ft² / m²
- 2 banks,each bank is 22 // 2
- Other Info
- Remove droplets and other particulates
- Location
- Our Central Warehouse, Aldridge, UK
- External Dimensions (WxDxH mm) [?]
- Fan; 2150 x 1700 x 2570
- Delivery Your delivery options
Description
A high volume indirect fan and chemical mist eliminator for the capture and neutralisation of solutions containing hexavalent chrome
The fan is a 18.5 kW indirect drive PVC unit with a Ø700 inlet and a 625 x 500mm outlet.
The horizontal eliminator is a self contained unit with under tank storage and pumping unit powering the 3 x eliminator spray bars, each with 3 x high velocity spray nozzles.
The eliminator consists of a inlet/ outlet size of 1090mm diameter with an internal arrangement of two panels, each with a cross sectional area of 2m² x
The tank would usually be filled with a Sodium Metabisulphate solution which neutralises the chromic acid particles from the airstream and the eliminator vanes then removes the wetted droplets and returns them back to the storage tank.
This is supplied by a NEMA 300/20 // 415 volt 3 phase magnetic drive pump
Print / Download Plasticraft Horizontal Fume Eliminator with Matching Centrifugal Fan Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
