Thermotron Environmental Chamber
Auction
- Our partner auctioneer is
- Peaker Pattinson
- Part of an Auction
- Clearance Auction
- Lot ID
- OY2018
- Manufacturer
- Thermotron
- Model
- SM 16 C
- Year of Manufacture
- 1991
- Serial
- 20481-S
- Condition
- From a working environment, Good Condition
- Internal Size (WxDxH mm) [?]
- 760 x 760 x 760
- Max Temp
- -70°C to +180°C
- Other Info
- Full Service History
- Location
- Rolls Royce Stores Unit 6
- Weight (kgs)
- 936
- External Dimensions (WxDxH mm) [?]
- 1800 x 1500 x 2500
- Delivery Your delivery options
Description

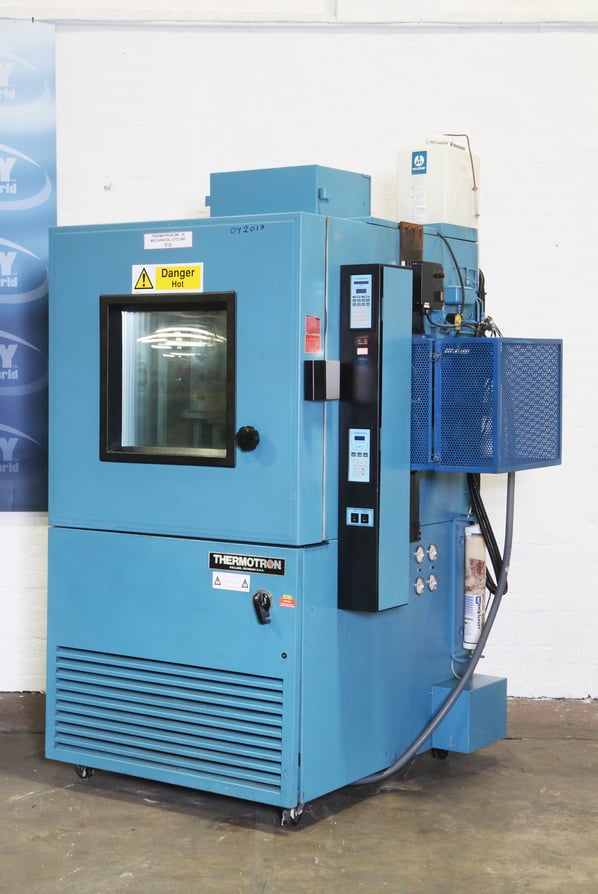

Thermotron SM-16 Thermal Climatic Test Chamber
When extreme temperature testing is required, the Thermotron SM-16 Test chamber offers ultimate flexibility
Typical applications include metallurgical conditioning and extreme durability testing, automotive temperature, as well as corrosion testing and electronic PCB burn in etc.
The chamber comprises a 453 litre stainless steel inner chamber, fully seam welded, enclosed in a mild steel outer shell. Between the two is a layer of mineral fibre and foam insulation.
A fully-hermetic air cooled refrigeration system is used to lower the temperature of the inner chamber, the refrigerant being passed through a finned evaporator coil located at the rear of the chamber behind an air baffle system.
The refrigeration plant is located in the lower compartment of the chamber and exhausts warm air to the BACK of the machine.
Heating of the chamber is effected by inconel sheathed heater elements located behind the baffle system.
Air flow is achieved using a single motor driven fan
Technical specification for the Thermotron SM-16 Thermal Climatic Test Chamber
- Volume litres 453
- Chamber Dimensions (w x d x h) 760 x 760 x 760
- External Dimensions Width (w x d x h) 1140 x 1500 x 2060
- Temperature range °C Maximum °C: -70 to +180 deg
- Temperature uniformity +/- 0.3°C
- Temperature control tolerance +/-0.3°C
- Cooling temperature range: +180°C to -68°C
- Heating temperature range: +23°C - +175°C
- Humidity Range: 10% to 98% Relative Humidity
- Dew point Temp Range: +7°C to +94°C
- Dry Bulb Temp Range: +7°C to +95°C
- Humidity variance: +/- 2.5% Relative Humidity
- Maximum heat load: 1800 Watts
- Power Supply volts: 230 volts single phase
- amps 13
- Type ¬ free standing
- Weight kg approx. 397
Please note that this machine does not have a separate 'humidity phase' as some customers require.
This machine is supplied with a full Operational manual including installation, service and programming procedures
Full service history
Print / Download Thermotron Environmental Chamber Datasheet
Auction Lots Descriptions and photographs are provided in good faith but may not be correct. It is the Customer's responsibility to ensure that the machinery is fit for the purpose for which it is purchased and safe for the purpose of use at work via physical inspection. All sales are deemed to be 'as inspected' and 'as is, in situ' even if the customer has waived the right to inspect.
