Machines & equipment for sale

Thermotron Environmental Chamber

Auction

Top Bid [?]
£
Reserve
Bidding closes [?]
()
Buyer's Premium [?]
15% BP will be added to your invoice
Part of an Auction
Clearance Auction

Place your bid

Your Bid [?]
£
Bid Now
OR
Your Max Bid (optional)[?]
£ You haven't set a maximum bid
Bid Now
Lot ID
OY2019
Manufacturer
Thermotron
Model
SM 16 CE
Year of Manufacture
1991
Serial
20482-S
Internal Size (WxDxH mm) [?]
760 x 760 x 760
Other Info
For Spares & Repairs
Location
Clearance Auction
Weight (kgs)
864
External Dimensions (WxDxH mm) [?]
1740 x 1440 x 2240
Delivery
Your delivery options

Description

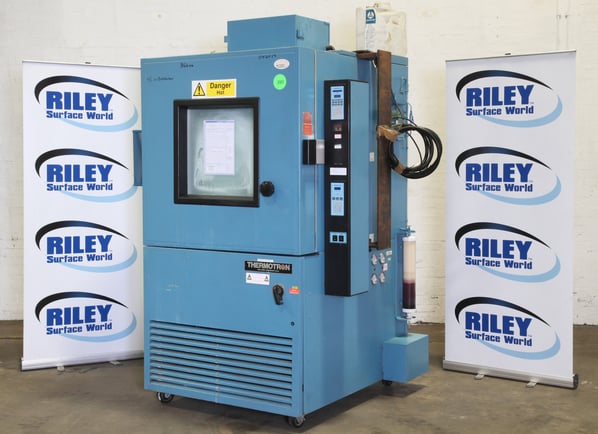

Thermotron SM-16 Thermal Climatic Test Chamber

When extreme temperature testing is required, the Thermotron SM-16 Test chamber offers ultimate flexibility

Typical applications include metallurgical conditioning and extreme durability testing, automotive temperature, as well as corrosion testing and electronic PCB burn in etc.

The chamber comprises a 453 litre stainless steel inner chamber, fully seam welded, enclosed in a mild steel outer shell. Between the two is a layer of mineral fibre and foam insulation.

A fully-hermetic air cooled refrigeration system is used to lower the temperature of the inner chamber, the refrigerant being passed through a finned evaporator coil located at the rear of the chamber behind an air baffle system.

The refrigeration plant is located in the lower compartment of the chamber and exhausts warm air to the BACK of the machine.

Heating of the chamber is effected by inconel sheathed heater elements located behind the baffle system.

Air flow is achieved using a single motor driven fan

Technical specification for the Thermotron SM-16 Thermal Climatic Test Chamber

  • Volume litres 453
  • Chamber Dimensions (w x d x h) 760 x 760 x 760
  • External Dimensions Width (w x d x h) 1140 x 1500 x 2060
  • Temperature range °C Maximum °C: -70 to +180 deg
  • Temperature uniformity +/- 0.3°C
  • Temperature control tolerance +/-0.3°C
  • Cooling temperature range: +180°C to -68°C
  • Heating temperature range: +23°C - +175°C
  • Humidity Range: 10% to 98% Relative Humidity
  • Dew point Temp Range: +7°C to +94°C
  • Dry Bulb Temp Range: +7°C to +95°C
  • Humidity variance: +/- 2.5% Relative Humidity
  • Maximum heat load: 1800 Watts
  • Power Supply volts: 230 volts single phase
  • amps 13
  • Type ¬ free standing
  • Weight kg approx. 397

Please note that this machine does not have a separate 'humidity phase' as some customers require.

This machine is supplied with a full Operational manual including installation, service and programming procedures

Condition

For Spares & Repairs
