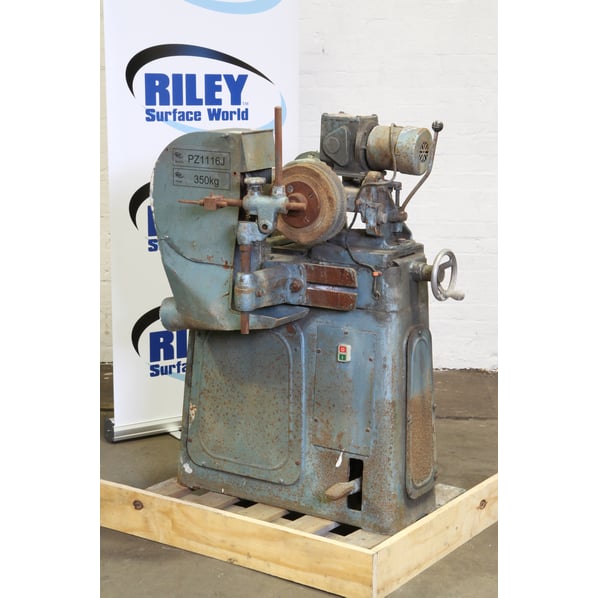

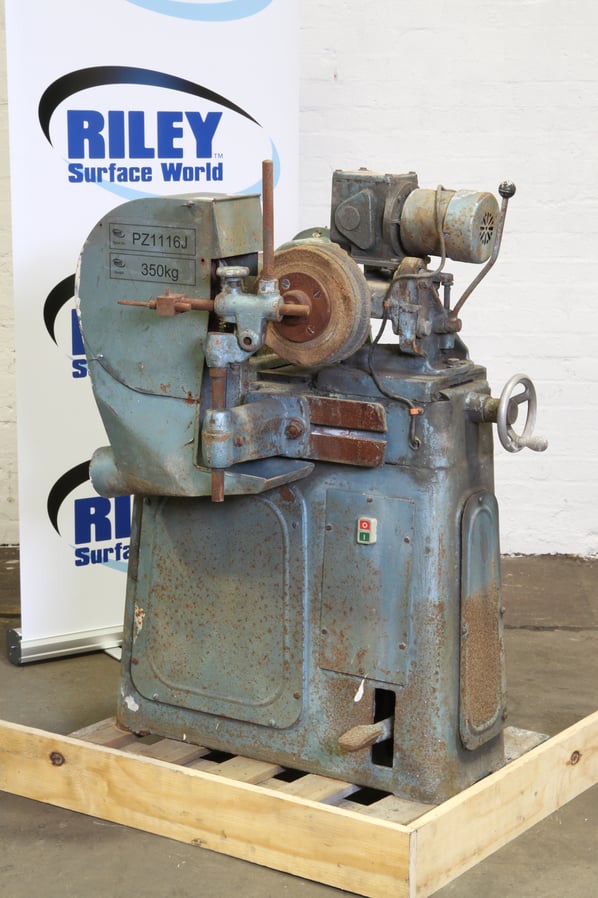

W Canning Centreless Tube Polisher
- Stock No
- PZ1116J
- Manufacturer
- W Canning
- Model
- 2396
- Serial
- D/169143
- R.P.M.
- Polishing Mop 2,500 rev/min
- Hp/Kw
- 2.5 Hp / 1.8Kw
- Other Info
- Speed of feed wheel 40rev/min
- Location
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- 350
- External Dimensions (WxDxH mm) [?]
- 700 x 880 x 1170
- Delivery Your delivery options
Description
A second hand automatic Machine for the Polishing and finishing of cylindrical parts. Centreless Polishers are designed for use on tubes, round bar, rolls, cylinders, pins, shafts,hollow sections, guide rails, extruder screws, billets, etc.
The Canning Model 2396 centreless is a single head 100mm wide centreless dry operation polishing and buffing machine designed with the flexibility of, when fitted, an optional abrasive belt linishing and banding attachment, multiple surface finishes can be achieved from the grinding of black stock bar through to mirror finishing of ground stock making this a truly universal cylindrical process finisher.
DESCRIPTION AND APPLICATIONS
This is one of the most robust and popular centreless grinding, finishing and polishing machine for tube, bar, shafts, pins, ever made . With the belt attachment when fitted it can be used with a number of different abrasive belts such as carbide and oxides for grinding, nylon belts for satin finishing, engineered belts for semi polishing and felt or cork belts for polishing.
FEATURES
- Comes with Attachment No 2396A for circular profile work such as hubs, lids, bushings, lamp parts and similar items.
- Diameter range: 3 mm to approx. 25.4 mm.
- Taper polishing feature.
- Reversing action for touch up or multiple passes or selective polishing.
- Head drive motor: 1.8kW.
- Feed speed 0 - 3 m/min.
- Max. tube weight: Approx. 20 kg.
Options
Additional attachments for this machine as listed below, are available, please ask for details.
- Floor mounted back stand idler.
- Rim polishing attachment.
- Work Rest for Centreless use.
Available as a fully refurbished machine, please ask for details.
Print / Download W Canning Centreless Tube Polisher Datasheet
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
