Machines & equipment for sale

Pollution Control Products Organic Coating Burn off Furnace

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Buy Now Add to Quote Contact Us
Stock No
OZ2092
Manufacturer
Pollution Control Products
Model
Euro99 SCTR 9 Modified depth
Year of Manufacture
1999
Serial
H1102
Internal Size (WxDxH mm) [?]
580 x 4000 x 1150
Max Temp
Primary 450°C, Secondary 800°C
Other Info
Unique 4 Meters Working Depth
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1930
External Dimensions (WxDxH mm) [?]
4650 x 1200 x 2050
Delivery
Your delivery options

Description

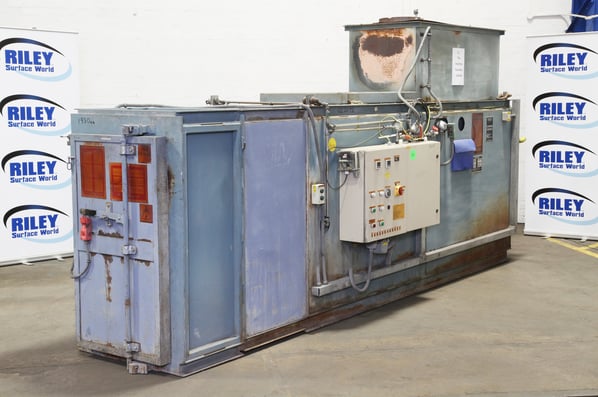

Pollution Controlled Products SCTR 9 (Modified depth) Natural Gas Cleaning Furnace

Product description
Thermal cleaning at up to 500° C removes all organic residues, even from fine bores. Depending on the melting and decomposition point of the residues, they are either melted or pyrolysed. The resulting exhaust air during the carbonization phase is burned in the afterburner chamber at over 850° C. The exhaust air is then burned in the afterburner chamber at over 850° C. The exhaust air is then burned in the afterburner chamber.

Cleaning in the pyrolysis process requires subsequent post-cleaning. Inorganic components, oxidation residues, corrosion, etc. remain on the tool surface and must be removed. The ultrasonic process with acidic or alkaline cleaning media or the blasting process with organic and mineral abrasives are suitable for this purpose.

Product details

  • Built-in afterburner chamber
  • Loading via extendable loading system
  • Insulated furnace chamber and afterburner
  • Overpressure relief flap on the plant roof
  • Control Siemens S7-1200 with touchscreen
  • Switch box with control for temperature and cleaning time
  • Ash collecting tray and water injection



HW 17.08.20

pdf icon Print / Download Pollution Control Products Organic Coating Burn off Furnace Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
