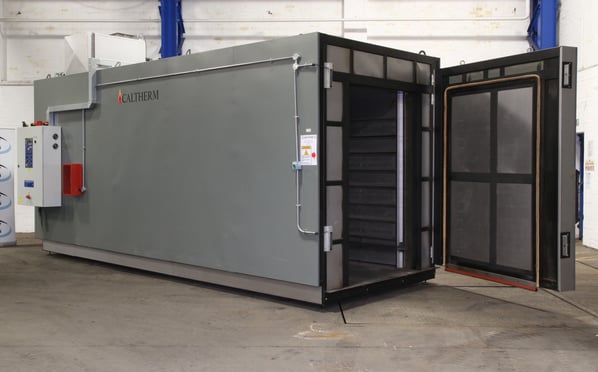

Caltherm Industrial Precision Multi Process Electric Heat Treatments Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
OZ2146
Manufacturer
Caltherm
Model
Bespoke Treatments Oven
Year of Manufacture
Sept. 2018
Serial
J7922E 09 18
Condition
From a working environment, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
1045 x 4900 x 2100
Max Temp
300°C
Other Info
AMS 2750 Class E
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
5000
External Dimensions (WxDxH mm) [?]
2670 x 6805 x 3460
Delivery
Your delivery options

Description

Large capacity 85kW, 300°C Caltherm multi purpose oven originally manufactured to very accurately temper plastic components for the automotive industry.

Features

  • Eurotherm NanoDAC programmer and data recorder via USB  link.
  • Overtemperature policeman is a Eurotherm 3216 controller.
  • 12 type K thermocouples to log internal temperature.
  • Manufactured in accordance with AMS2750E.
  • 'Man-in-oven' emergency grab wire, cutting the cycle, activating an audio/visual alarm and activating the extractor fan.
  • Extractor fan with airflow switch for alarm.
  • Controlled cooling via motorised inlet damper.
  • Power FLC 148 Amps : Starting 148 Amps
  • Single swing open door
  • 15 shelf, double sided  trolley. (60 trays in total)
  • Large air circulation fan, driven by 11kW motor, resulting in exceptional temperature uniformity.
  • Could be  fit into a floor pit to give trolley access at ground level.
  • 9 Channel thermocouple temperature survey showing excellent temperature uniformity.
  • Commissioned January 2019.

Build Specification.

  • External skin is mild steel sheet with PVC coating finish.
  • Internal skin Aluminised steel.
  • Insulation is Rockwool panels.
  • Adjustable mountings for site levelling.

pdf icon Print / Download Caltherm Industrial Precision Multi Process Electric Heat Treatments Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
