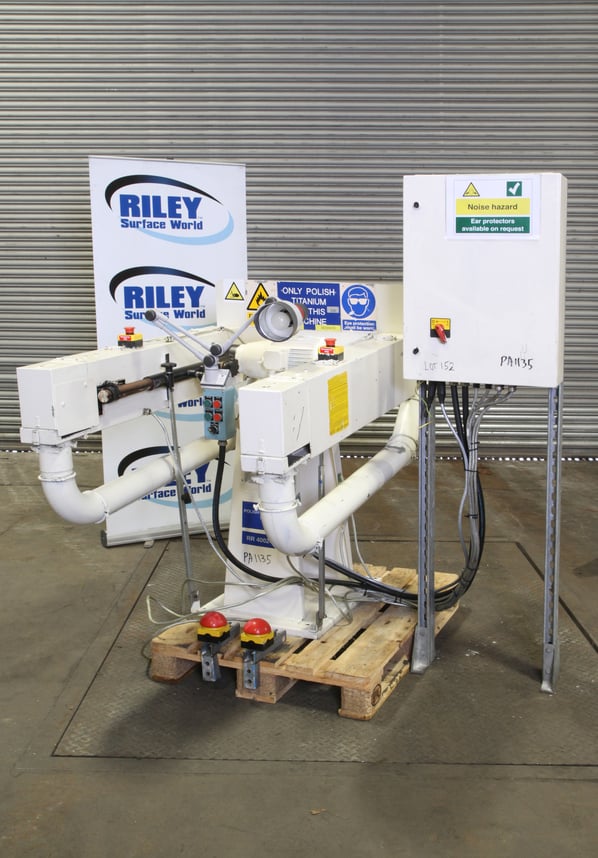

Marpol Double Ended Profile Belt Blending & Linishing Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
PA1135
Manufacturer
Marpol
Model
M 774/776
Year of Manufacture
Ref: 2015
Serial
785548
Condition
From a working environment, Good Condition
R.P.M.
1500 // 2900
Hp/Kw
3//2.2kW
Other Info
Idling Operator Contact rollers
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
890 x 3200 x 1300
Delivery
Your delivery options

Description

The Marpol Model MM 774/776 is a multi-purpose twin head abrasive belt grinding, blending, linishing for complex profiles machine that has a dual-speed drive motor that allows the use of different polyurethane contact wheel diameters without changing the belt cutting speed.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.



The telescopic belt arm compensates for any difference in the abrasive belt length.

Despite its great versatility, the machine is both easy to set up and simple to use. The previous owner was processing titanium parts only.

Features

  • Max. working width: 50mm.
  • Abrasive belt size: 50mm x 2500mm.
  • Contact wheel diameter from 20mm to 200mm.
  • 3 HP, two speed.
  • Adjustable working height.
  • DC brake.
  • Emergency kick stop buttons.
  • Articulated lamp.

pdf icon Print / Download Marpol Double Ended Profile Belt Blending & Linishing Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
