Dust Control Systems Ltd Clean Air Make up Facility

Stock No

FA126

Manufacturer

Dust Control Systems Ltd

Model

SWSI BFN 900 100-80

Year of Manufacture

2015

Serial

21973-1

Condition

From a working environment, Good Condition

Approx Duty CFM / M³/Hr

11759 / 19980

Filter Area ft² / m²

Multiple Filter layers. 18 off filters

Other Info

panels no:1 400kg

Location

Our Central Warehouse, Aldridge, UK

Weight (kgs)

840

External Dimensions (WxDxH mm) [?]

1800 x 1400 x 2100

Delivery

Your delivery options

Description

Originally designed to deliver replacement clean air to a 'Sertmetal' Coating Booth , this system comes with a fan and inlet air filtration system.  A high volume fan powered by a 22kW / 25hp motor and a flow rate of 5.55m³/sec will be sufficient  to cover most applications.

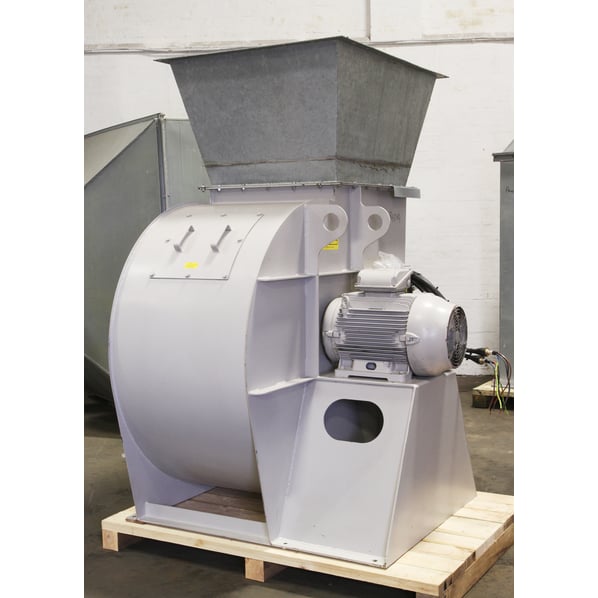

Extraction Fan

• Flow rate of 5.55M³/Sec at pressure 2600 pa
• 1400 rev/min.
• 22kW of power.
• 800mm diameter ducting

Filtration

• Twin filter housings.
• Multiple internal filter elements. Quantity18 filters.

Applications

• Air supply high volume positive pressure clean air make up system.



Acoustic booth is flat packed as seen in the images and fits around the fan unit.

Print / Download Dust Control Systems Ltd Clean Air Make up Facility Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
