Machines & equipment for sale

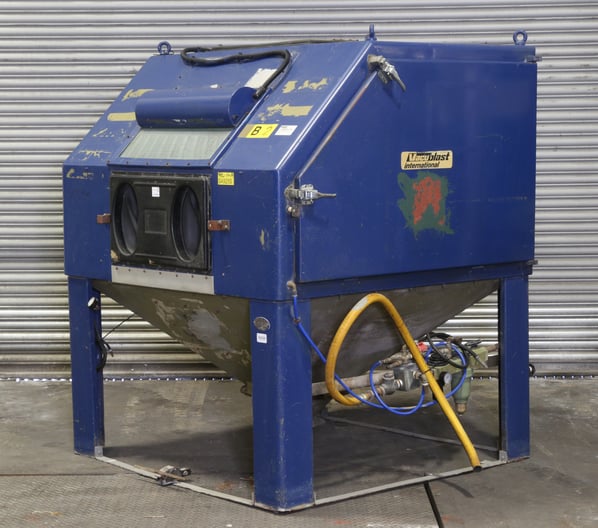

Vacublast (Wheelabrator) Blastmaster PB150 Pressure Fed Manual Blast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW
Buy Now Add to Quote Contact Us
Stock No
SA925S
Manufacturer
Vacublast (Wheelabrator)
Model
Blastmaster PB150
Year of Manufacture
1979
Serial
15.760
Condition
From a working environment, Seen working by RSW
Work Envelope (WxDxH mm) [?]
1500 x 1335 x 930mm
Work Handling Method
Manual
Other Info
Heavy Duty Gravity Shot Recovery
Location
Rolls Royce stores, near Derby, UK
Weight (kgs)
500
External Dimensions (WxDxH mm) [?]
1750 x 1630 x 1920
Delivery
Your delivery options

Description

A much sought-after Wheelabrator Blastmaster PB150 Pressure Fed Manual blast cabinet, has been designed specifically for a large number of media blasting applications where high work output is required designed and built for the aerospace industry.

Cleaning rates are up to 5 times the speed of suction cabinets and are suitable for use with a wide range of abrasives such as steel shot, aluminium oxide, glass bead, and walnut shell to name but a few.

Typical applications

Currently using Aluminium Oxide, pressure feed machines are commonly used in high production environments or on applications such as peening, surface coatings removal, surface preparation, and cleaning. This particular model has used for paint stripping using plastic blast media and as such has very little wear.

  • Paint stripping.
  • Delicate cleaning Features.
  • Heavy Corrosion.
  • Tough Coatings.

This used Vacublast pressure feed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Vacublast Shot Blast Features

  • Low noise levels.
  • Robust construction.
  • High ventilation rate for good visibility.
  • Large viewing window.
  • Underslung blast generator and dust collector.
  • Pressure regulation at the operator position for easy adjustment.
  • Elliptical glove ports to suit a wide range of operator sizes.
  • Internal blowdown gun.
  • Anti-static gauntlets.
  • Aerated adjustable feed valve for uniform abrasive feed.
  • Interlocked door.
  • Foot peddle operation.

Former BAE Systems Machinery

This plant is one of several machines acquired during BAE System's reorganisation of their manufacturing facility at Brough, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality aviation and aerospace components,
but can provide a benefit to any industry.


Specification:

  • Internal Size (WxDxH) - 1500mm x 1340mm x 1180mm
  • Power consumption - 3 kW // 4Hp
  • Air consumption (max) - 2.3m3/min (82 cfm)
  • Lighting level (average) - 900 Lux
  • Electrical supply - 400V, 50Hz, 3 phase

Please note: Heavy duty blasting applications using heavy metallic shot medias, are significantly improved returning media to pressure pot through gravity feed. Blastmaster is designed to utilise that significant process advantage, media gravity returns to pressure pot.

pdf icon Print / Download Vacublast (Wheelabrator) Blastmaster PB150 Pressure Fed Manual Blast Cabinet Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
