Machines & equipment for sale

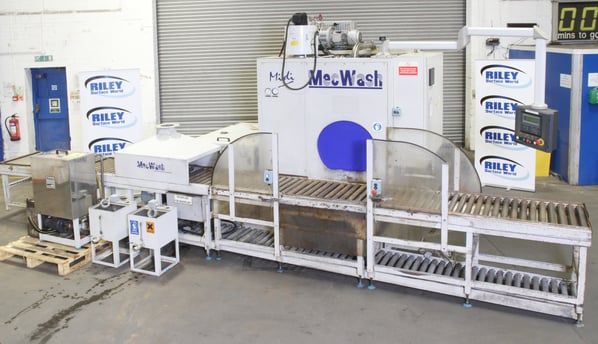

MecWash Midi 400 Aqueous Washing, Rinsing and Drying Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DA1396S
Manufacturer
MecWash
Model
MIDI 400
Year of Manufacture
2000
Serial
M274
Condition
From a working environment, Seen working by RSW, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
400mm wide x 600mm deep x 400mm high
Process Stages
Immersion wash, spray rinse & vacuum dry
Other Info
Rotational Wet Vacuum Drying System
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2120 x 1850 x 2840
Delivery
Your delivery options

Description

MecWash Midi 400 (load conveyor not included)

The MecWash Midi 400 provides the ultimate flexible aqueous component cleaning & degreasing system.

The machine has been serviced by Mecwash every year from new.

The systems combines high flow washing, rinsing, blown air and vacuum drying to provide the highest quality of component cleaning and drying available.

There can be up to 6 stored wash cycle programmes  held by the machine.

The systems is designed to process complex and intricate machined or pressed parts that require very high standards of cleanliness, surface finish and dryness, including the removal of all types of contamination from soluble and mineral oils to greases, polishing compounds, lapping pastes and dye penetrants.

Equipment Specification:

  • Wash chamber: 400mm wide x 400mm high x 600mm long.
  • Currently configure to take 2 x 400mm x 600mm x 210mm baskets.
  • Variable speed contra rotation.
  • Stainless steel rotation support wheels.
  • 200kg load capacity.
  • Rotational re-circulating heated spray/flood wash with from the internal 600ltr capacity sump.
  • Rotational Re-Circulating Heated Spray/Flood Rinse from the internal 350ltr capacity sump.
  • Total-loss cold water fine spray rinse (draining into first rinse).
  • Rotational high velocity air dry.
  • Wash and rinse mesh strainers baskets (500µm)
  • Wash In-line bag filter (with 50µm bag)
  • Rinse In-line cartridge filter (with 30-40µm cartridge)
  • Wash automatic chemical dosing.
  • PLC and operator LCD display (including 6 Programs, process information & fault diagnostics)
  • Filtermist steam extraction/condensation unit.
  • Vacuum dry cycle.
  • A selection of Stainless steel perforated/mesh baskets, measuring 600mm x 400mm x 210mm high.

 Please see Mecwash report from March 2023 attached

pdf icon Print / Download MecWash Midi 400 Aqueous Washing, Rinsing and Drying Machine Datasheet

Additional files

Mecwash Service Report March 2023

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
