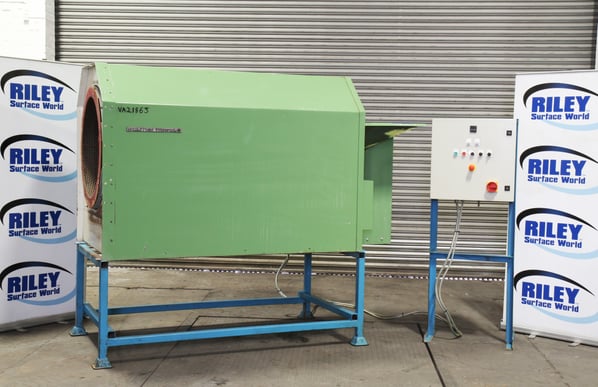

Walther Trowal DLT4 Continuous Rotary Drum High Component Volume Maize Dryer

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
VA2186J
Manufacturer
Walther Trowal
Model
DLT.4SM
Year of Manufacture
1987
Serial
13229
Condition
From a working environment, Excellent Condition, Current Model
Capacity
1,000 (kg/h)
Type
Continuous parts dryer
Other Info
High throughput machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
825
External Dimensions (WxDxH mm) [?]
2520 x 1100 x 2300 (Inc. stand)
Delivery
Your delivery options

Description

This second hand Walther Trowal DLT4 parts drier is for the drying of mass produced parts on a continuous basis. Ideally suited as a secondary process after mass parts finishing in vibratory and high energy systems.

After the finishing process, the finished, but wet parts must normally be dried. With  the Walther Trowal rotary drum type driers of the model range DLT, the parts are gently and stain free dried in a heated drying medium consisting of corncob, ground walnut shells or wood chips.

  • For large quantities of small parts, i.e. flat bulk parts.
  • Especially suited for drying of cup-shaped parts.

Functional principle

The parts are transported through a rotating screen drum in a continuous mode. The drying of the parts takes place with heated drying medium.

  • Electrical heating with variable temperature adjustment.
  • Built-in rotating screen drum for separating the parts from the drying medium.
  • Automatic return of the drying medium to the heating zone.
  • Travel (heating) time adjustable from 2 to 4 minutes.
  • Continuous operation facilitates the linking of the drying process with production stages prior to and after drying.

DLT 4 Specification

  • Max. heating capacity (kW) 10
  • Power of main drive (kW) 0.37
  • Max. parts throughput's (kg/h) 1,000
  • Rotational drum speed (RPM) 3.5/7
  • Barrel diameter x length (mm) 840 x 1,700
  • Hopper chute dimensions(mm) 480 x 330mm (inlet - 180mm Ø)
  • Screen drum ø x length (mm) 660Ø x 700mm depth
  • Screen drum- perforation (mm) 6 tbc
  • Weight, empty (kg) 822

pdf icon Print / Download Walther Trowal DLT4 Continuous Rotary Drum High Component Volume Maize Dryer Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
