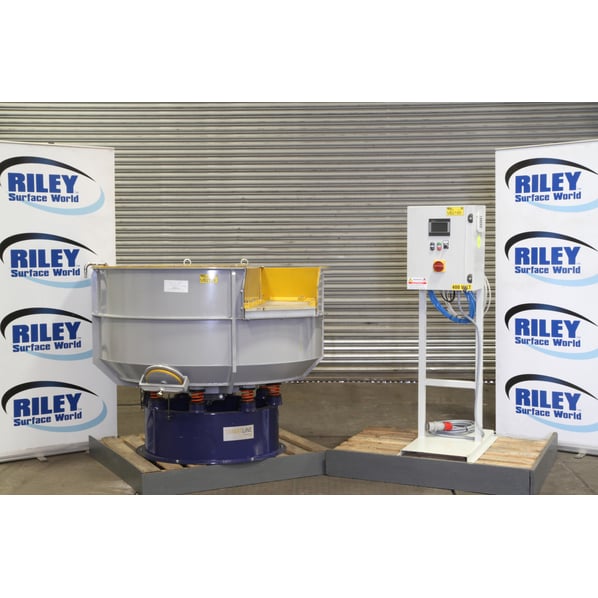

Rollwasch SmartLine Round Bowl Vibratory Machine

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Seen working by RSW, Ex demonstration, Current Model
Buy Now Add to Quote Contact Us
Stock No
VB2199
Manufacturer
Rollwasch
Model
RVS-5
Year of Manufacture
2017
Serial
20019 & 20021
Condition
Seen working by RSW, Ex demonstration, Current Model
Capacity
550 Litres gross, 350 Litres net
Type
Bowl with separator
Other Info
Footprint 2100 x 3500 x 3000 mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
490
External Dimensions (WxDxH mm) [?]
1468 x 1468 x 1278
Delivery
Your delivery options

Description

Very Easy to Separate and Unload, the RVS series offers the very highest specification including all key extras as standard.

The Wheelabrator Vibro RVS-5 vibratory bowl with separation and unload is designed for processing medium size components and higher volume batches, as well as prototypes. Well suited for processing metallic components and additive manufactured 3D printed components alike.

The programable touch screen control panel and frequency inverter variable speed drive 870 – 1500 rpm coupled with the CMS-80 water and compound metering system gives the operator ultimate control over the process.

The extra deep acoustic noise reduction semi-enclosure offers excellent noise suppression over the standard vibro lid (noise reduction of up to 10 dB depending on media selection and components).

The RVS-5 machine is positioned at a comfortable operator working height and has a pneumatically operated unload flap, which provides lift to the spacious interchangeable separation sieve screen providing efficient evacuation of components and return of media to the process bowl. With the addition of an Indisk reverse flow feature to clear media from the pneumatic flap prior and to protect the components from any unnecessary damage in the process. A very high level specification finishing machine with key extras as standard.

Rollwasch and Wheelabrator

Rollwasch Italiana S.p.a, Italy, have 60+ years of specialised mass finishing experience and are the 'real deal' in this marketplace.
Even the world renowned Wheelabrator group partnered with Rollwasch to import machines as part of their, now closed, UK Vibro division.
Therefore you will see these machines carrying the Wheelabrator group branding.
Rileys can confirm Rollwasch are available to support this machines with service, spares and support.



Suitable for a Wide Range of Applications Including:

  • Deburring
  • Flash Removal
  • Polishing
  • Grinding
  • Smoothing
  • Superfinishing
  • Edge Breaking
  • Surface Blending
  • Pre-Anodised and Chemical Plate Finishes
  • Metallics, Ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • Two-part moulded cast polyurethane lining for inner chamber protection
  • Pneumatically operated and unload flap
  • Indisk reverse flow feature to clear media and components from flap area
  • Components and media separation sieve screen
  • Oil and abrasion resistant working bowl for longer life
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel for simplified operation
  • Variable speed frequency inverter for optimum process control with quick turn speed dial
  • CMS-80 Meter Unit to ensure controlled delivery of water and liquid compound dosing
  • Compact equipment stand for the control panel and metering station
  • Double flange vertically mounted drive motor featuring long life bearings for increased durability

 Included:

  • RVS-5 vibratory bowl with pneumatic flap and Indisk
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel with variable speed dial
  • CMS-80 water and compound metering station
  • Freestanding control panel and metering station stand
  • 2 Additional interchangeable separation screens

 Technical Details:

  • 2019 machine – New in Crate
  • 550 Litre gross chamber
  • 350 Litre net process chamber
  • Chamber width 380mm
  • 4 kW drive motor (24 Amp)
  • Frequency Inverter - Variable Speed Drive 870 – 1500 rpm
  • 400v 3-Phase 5-Pin (3+N+E) socket
  • Theoretical maximum diagonal component dimension = 336mm (ideal batch maximum diagonal 168mm)
  • Work Channel - 375 mm wide x 655 mm deep

A very versatile finishing machine with superior components separation and unloading. What’s not to like about this fantastic workhorse of a machine.



pdf icon Print / Download Rollwasch SmartLine Round Bowl Vibratory Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
