Bemco Inc. 316 Stainless Steel Thermal Heating and Cooling Panel

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Excellent Condition, Unused, Current Model
Buy Now Add to Quote Contact Us
Stock No
MB772
Manufacturer
Bemco Inc.
Model
Double Plate
Year of Manufacture
Unused
Condition
Excellent Condition, Unused, Current Model
Capacity
1395 x 1100 x 2
Process Application
Cooling / Heating
Other Info
Suitable for Side Mounting
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
110
External Dimensions (WxDxH mm) [?]
1395 x 250 x 1555
Delivery
Your delivery options

Description

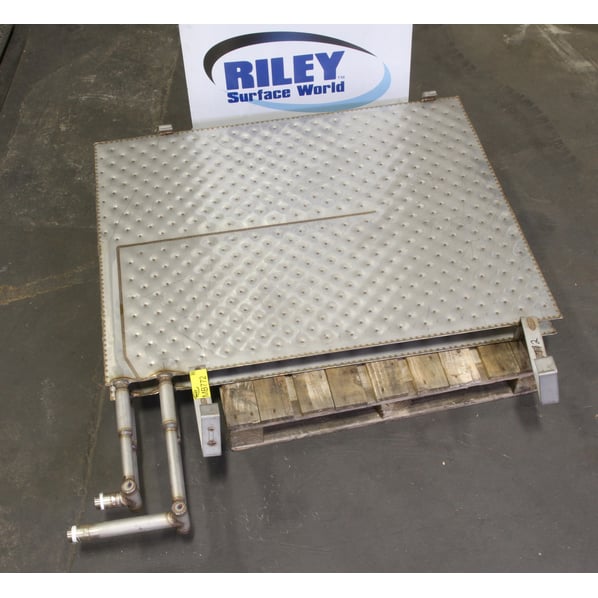

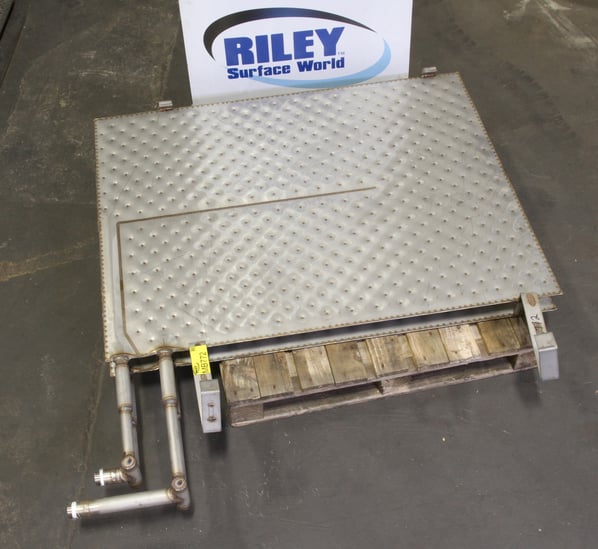

A 316 stainless steel, double panel heating battery complete with manifold, channelled path configuration. Single entry and exit with 3/4"BSP threaded couplings.

BEMCO Thermal Panels are double embossed and constructed of Titanium or Stainless. They offer a more efficient regulator of process solutions than traditional coiled systems.

  • Thermal Panels occupy less than one third of the space taken up by conventional coils of equivalent output. This means that more space is available for extra throughput or for improving tank layout. Moreover, because of their narrow profile (less than ½” deep), they can be slotted into the narrowest of apertures.
  • Benefits include the reduced possibility of mechanical or electrical damage (arcing), because of their relative size, and increased resilience to damage or deformation by the nature of their construction. They are equally suitable for heating as they are for cooling and entirely compatible with most conventional media (e.g. steam, high pressure hot water, thermal oil, glycol, chilled and mains water etc.).
  • Due to their design and flow characteristics, pressure drop and steam hammer considerations are virtually eliminated. Standard BEMCO panels incorporating two 15” (380mm) long ¾” BSP connections.
  • Fixing straps/brackets and liquid level shrouds can also be fitted. Each panel is 150lb (10 bar) rated and hydraulically tested after manufacture.

Specification

  • Stainless steel construction. (approx. 2.0mm thick sheets welded and fabricated to give up to 10mm thickness of panel)
  • Double plate.
  • Capacity 1395mm x 1100mm x 2 (approx. 21.5 Litres)
  • Single point inlet and outlet.
  • 3/4" BSP thread.
  • Mounting straps.

pdf icon Print / Download Bemco Inc. 316 Stainless Steel Thermal Heating and Cooling Panel Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
