Machines & equipment for sale

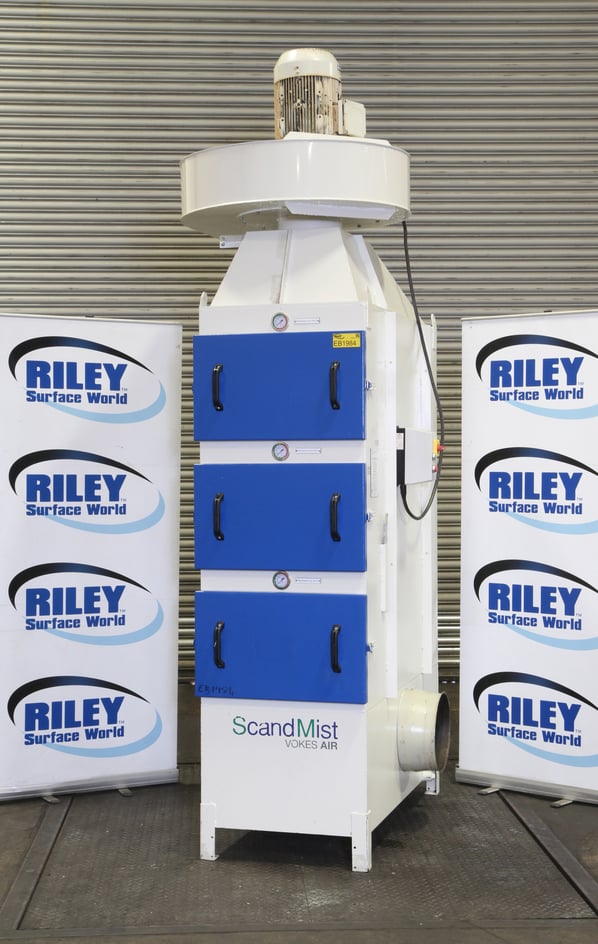

Vokes Oil Mist Air Filter Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
EB1984
Manufacturer
Vokes
Model
Scand-mist MA400D
Year of Manufacture
2013
Serial
p6338 / 722000170
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
2354/4000
Other Info
Inlet Ø300mm : 7.5 Kw
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
496
External Dimensions (WxDxH mm) [?]
865 x 1380 x 2990
Delivery
Your delivery options

Description

A heavy duty industrial air cleaner for effectively separating oil mists, oil fumes and emulsion mists during continuous operations. There are three filter stages with differential pressure gauges at each step. The first filter is washable which reduces operating costs.

The primary and secondary free-draining filters consist of various types and combinations of filter media and are designed specifically to handle the most demanding operating applications and processes. The unique structure of the filters allows for extreme loading of oil fumes and oilmist. The first filter is washable, which can contribute to low operating costs. All ScandMist units are fitted with a HEPA filter rated H13. Servicing all the filters is made easy using a secure front hatch, and a system which employs a parallelogram, ensuring repeatable airtight sealing.

 Features

  • Differential Pressure Gauges for each filter step indicate the filter’s condition.
  • ScandMist units are equipped with a superior all-welded Radial Fan with backward bent blades.
  • 3 phase 230/440 Volt.
  • Inlet and drainage can be connected on either side.
  • Modular design so multiple units can be linked to increasing capacity.

Full replacement filter set £1092 approx.

pdf icon Print / Download Vokes Oil Mist Air Filter Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
