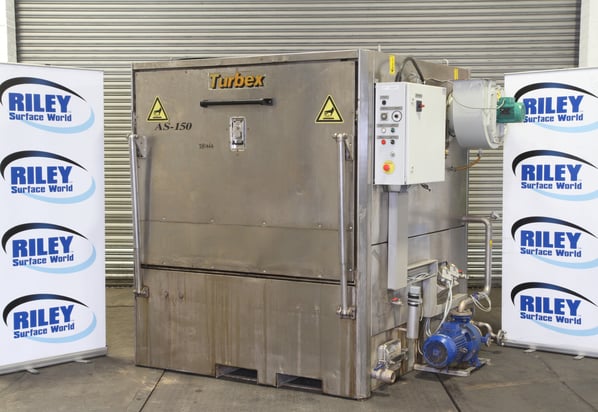

Turbex AS150 Single Stage Front Loading Industrial Parts Washing Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
DB1464
Manufacturer
Turbex
Model
AS-150
Year of Manufacture
2008
Serial
20005108
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
1300 x 1300 x 900
Process Stages
Single Stage Wash + Pressure Lance
Other Info
High Pressure Spray Lance
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1320
External Dimensions (WxDxH mm) [?]
2300 x 3300 (Door open) x 2150
Delivery
Your delivery options

Description

AS-150 Single stage cleaning machines are intended for the aqueous cleaning of medium and large components, when a single detergent spray wash stage process is sufficient for the cleanliness requirements.

The cleaning machines are typically used in general manufacturing, vehicle garages and maintenance workshops.

These machines provide excellent cleaning performance due to clever design principles used in addition to the spray pressures and high liquid flow rates achieved by the pump. The spray system rotates around a fixed load. The hot detergent is sprayed from all directions into the components to achieve full coverage and the best possible results; the liquid is filtered before entering the tank for recycling.

The Turbex AS-150 unit has dimensions of 1300mm x 1300mm x 900mm washing height.

Complete with a wheeled platform for loading carriers into the wash chamber. Electric heating to the sump, and solution filtration.

All stainless steel construction with a front opening door with gas springs that doubles as the workload platform.

AS-150 Specification:

  • Stainless steel construction.
  • Stainless steel rotating spray system.
  • 24kW of Heating.
  • Side accessible sludge removal door for ease of service access.
  • Integral stainless steel filter basket, 500µM.
  • Thermostatically controlled electric heating with angled heaters for easy removal.
  • Fully insulated machine.
  • Hinged front opening door with gas springs.
  • Door safety switch.
  • High flow rate and pump pressure.
  • Capable of cleaning components up Ø1300mm and 700Kg in weight.
  • Low level alarm with heating and pump protection.
  • Adjustable wash timer.
  • 24v control circuit.
  • Emergency stop button.
  • Load platform/trolley.


Overall dimensions: 2300mm x 3300mm (door open) x 2150mm
Weight: 1320Kg
Total power: 25kW
Tank volume: 1050 Litres

Features

  • 7.5kW  / 10 Hp Wash Pump.
  • 440L/Min flow rate.
  • 0.25kW Steam extraction fan.
  • 2 x 12kW Heating elements.
  • 1.5kW spray lance.
  • Weekly timer.
  • Wash timer.

pdf icon Print / Download Turbex AS150 Single Stage Front Loading Industrial Parts Washing Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
