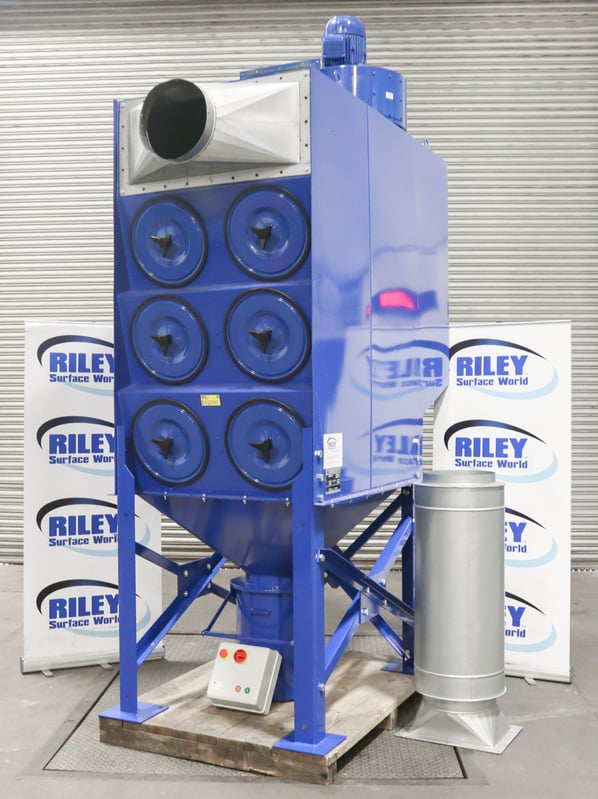

Riley DFRPC 3-12 Down Flow Reverse Pulse Cleaning Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Refurbished by RSW, Excellent Condition, Ex demonstration, Current Model
Buy Now Add to Quote Contact Us
Stock No
EC2030
Manufacturer
Riley
Model
DFRPC 3-12 80/20 Fr media
Year of Manufacture
2023
Serial
0703 19
Condition
Refurbished by RSW, Excellent Condition, Ex demonstration, Current Model
Approx Duty CFM / M³/Hr
4,944 // 8,400
Filter Area ft² / m²
1200 ft2 // 113M2
Other Info
British Made 12 New Cartridges Fitted
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1720
External Dimensions (WxDxH mm) [?]
1021 x 2275 x 3513
Delivery
Your delivery options

Description

Down Flow Reverse Pulse Cleaning (DFRPC) Range

Having been in the surface finishing industry as a supplier of quality used plant and equipment for over 50 years, we have seen the full spectrum of machines on offer from all of the major suppliers all over Europe. Having seen the best available, we now have a design that incorporates features that we believe will rival any of the current extractors available on the market today and at a very competitive price.

Many industrial applications will produce dust which needs to be extracted and filtered accordingly. All of our dust extraction systems are made in the UK and can be tailored to meet your specific needs.

The DFRPC delivers optimum performance and is one of the best value dust collectors available in today’s marketplace.

Each unit is pressure tested after welding to ensure the integrity of the welded unit.

Benefits

  • Built in the United Kingdom using only the best components available.
  • Made from fabricated and welded heavy duty 4 mm carbon steel.
  • Unit mounted and free standing fan sets tailored to make the best use of the available space.
  • Ledge less construction and angled filters eliminates dust build up.
  • Compact design minimises floor space.
  • Powerful performance filter cartridge technology.
  • Cleaning system that provides 30% more cleaning energy.
  • Cost savings from fewer filter changes, reduced filter disposal costs, and less energy usage.
  • Easy system set up.
  • Easy for maintenance.
  • Inlet shrouds to prevent direct impingement onto the top tier of the elements.
  • Dust containers dust discharge.
  • ATEX rated explosion panel included.
  • Supplied with 80/20 Cellulose cartridges.

Modular Construction

The three module high design has a large range of capacities that can be achieved by simply coupling together any combination of extraction units together with common inlet and outlet manifolds offering not only a wide range of capacities but also dutied systems with independent fans for multi-point extraction systems.

The advantage of sharing a common design, allows any installed system to be expanded at any time as and when it may be required.

Reverse Pulse Dust Extractor Features

Available Models

Model NoWeightNumber of CartridgesMedia AreaLengthWidthHeight
DFRPC 3-121720kg12113m²1021mm2275mm3513mm
Paired withFanExtraction range m³/hrExtraction CFM
 7.5kW8,4004,944

Industrial Cartridge Filter Design

Our dust extractors can filter highly contaminated volumes of air. The dust-laden waste gases enter through the inlet by vacuum or pressure. The gases are then filtered through the cartridges and exit through the vents into the clean air to be either channelled outside or re-circulated depending on the application in hand. Our dust extraction filters are easily changed from the front of the unit, and they can also be offered in a non-woven material for those applications where non-woven cartridge filters are suitable.

The use of downward airflow and inclined filters has resolved the problem of dust retention on the upper surface of the filters. It also enables a more compact cartridge filter design and enhanced cleaning efficiency as every element is cleaned by its own pulse valve instead of rows of elements cleaned by a jet pipe arrangement.

A ledge less hopper in combination with proprietary Nanofibre filter media and reverse pulse cleaning technology offers strong performances in traditional applications such as metal and woodworking, which all adds up to long-term savings and improved performance in most applications.

Industrial Cartridge Filters

Riley's DFRPC dust extractors have an extensive range of cartridge filters available to suit most applications. These dust extractor cartridge filters are technically advanced in design to give you the cleanest returned air. The cartridges being cleaned by compressed air makes the system highly efficient. Cartridge filters can save up to 40% on space in comparison to conventional multi-pocket or tubular bag type extraction systems.

Pleated Cartridge Filter
Pleated Cartridge Filter elements were originally designed and developed for use as truck air intake filters. The media was very simple folded and pleated paper and they served that purpose very well. In the mid 1980's the dust control industry recognized their potential use for low dust loaded non arduous dust collector applications.

Cartridge Dust Filters
The wider application of Cartridge Dust Filters in the 1990s forced the development of sophisticated technical media to allow the design to be applied to a much wider range of duties. These units are now developed to a point where they offer a very low cost solution to a very wide range of dust control applications.

Cartridges Typically Available

Spun Bonded Filter Cartridges

660 X 352 - 9.4 m²

  • Spun Bonded Polyester
  • Spun Bonded Polyester (ANTISTATIC)
  • Spun Bonded Polyester (FULL PTFE MEMBRANE)

Cellulose Filter Cartridges

660 X 350 - 23 m²

  • Cellulose - As supplied with this machine
  • Cellulose (FR)

Nanoweb Filter Cartridges

660 X 350 - 23 m²

  • Nanoweb (FR) for plasma cutting applications

pdf icon Print / Download Riley DFRPC 3-12 Down Flow Reverse Pulse Cleaning Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
