Dust Extraction Int Ltd Model 25M - 4kW 5.5 Hp Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
EC2032
Manufacturer
Dust Extraction Int Ltd
Model
25M
Year of Manufacture
08 2003
Serial
031918028
Condition
From a working environment, Excellent Condition
Approx Duty CFM / M³/Hr
1500 - 2500
Filter Area ft² / m²
250 - 25
Other Info
Filter shaker bag extractor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
420
External Dimensions (WxDxH mm) [?]
1365 x 1100 x 3150mm
Delivery
Your delivery options

Description

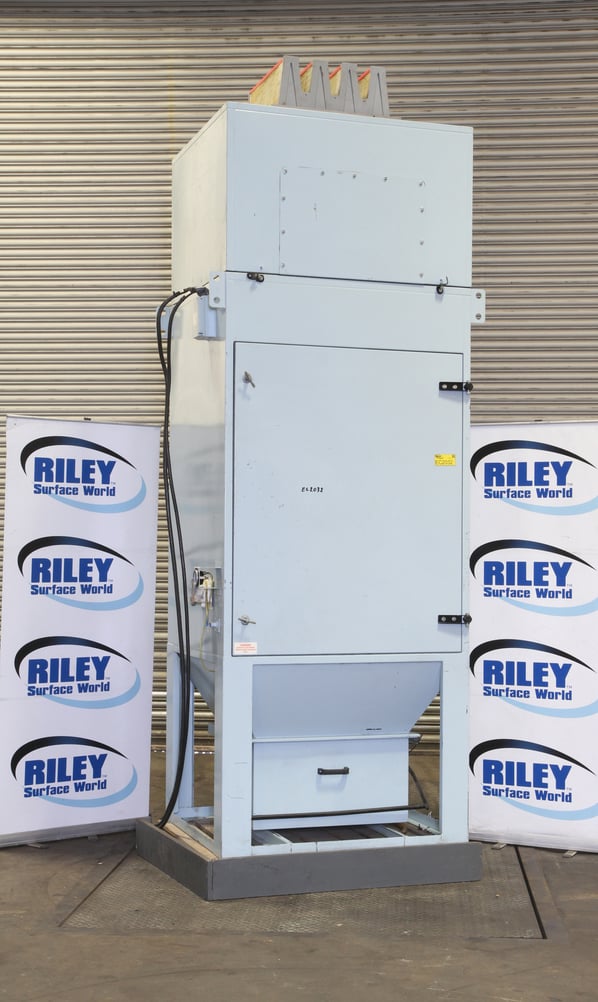

This second hand unit is powered by a 4 kW // 5.5 Hp fan covered by a silencer and after filters. The waste materials are collected in the quick release steel bin at the base of the machine.

A compact versatile range of robust self-contained auto-shake clean filter bags with secondary multi-vee pocket filter.

The 25M is particularly suitable for commercial and educational applications because of its neat unobtrusive appearance and simple operation.

Specifications

  • 150 Litres quick release dust collection bucket.
  • 12 internal bag filters.
  • Roof mounted multi vee pocket after filters.
  • 4kW // 5.5 Hp fan motor.
  • Rear inlet aperture of 600 x 150mm (Transition piece to Ø200mm).
  • Bag filter area 250ft² // 25M².
  • Differential pressure gage.

Possible Applications

  • Foundry - fettling castings.
  • Ferrous and non-ferrous metal finishing.
  • Manual processes such as grinding and linishing.
  • Wood working workshops and small scale manufacturing.
  • Educational workshops.
  • Working booths for ceramics and pottery.
  • Non continuous powder coating.
  •  Most ambient temperature applications that are intermittent operations.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

pdf icon Print / Download Dust Extraction Int Ltd Model 25M - 4kW 5.5 Hp Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
