Machines & equipment for sale

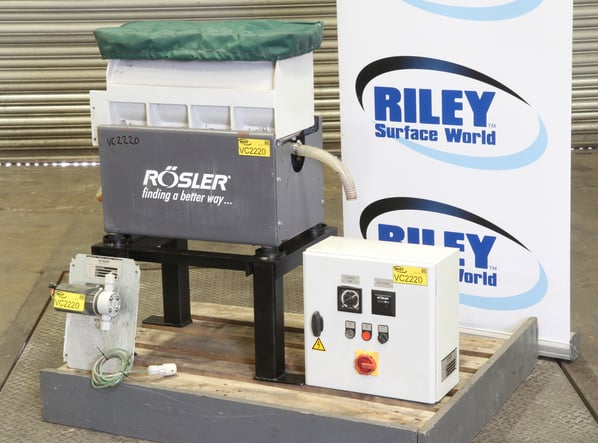

Rosler R180/530 TE-30 'Super Speed' Minor Vibratory Trough

Stock No
VC2220
Manufacturer
Rosler
Model
R180/530 TE-30
Year of Manufacture
2011
Serial
53193
Condition
Good Condition, Current Model
Capacity
10 litres
Type
Vibratory Trough
Other Info
3,000 rev/Min 'super speed' 0.65kW Drive
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
35 without stand
External Dimensions (WxDxH mm) [?]
360 x 660 x 640 without stand
Delivery
Your delivery options

Description

The compact Minor model is equipped with a vibratory foot motor mounted underneath the work bowl. This direct drive system generates a powerful vibratory force at relatively low energy costs and allows for a compact machine design. Compact and powerful, this machine can be used for finishing a wide variety of small workpieces produced in relatively small batches. Part-on-part processing without any media is also possible in these machines.

Features

  • Splash cover/guard.
  • Units are supplied with control panels, metering system and splash guard.
  • Run hours only 1900 (50 weeks /1 year at 40 Hrs /Week).
  • Top mounted rails for trough dividing panels (not included).

Principles of Vibratory Finishing

  • Vibratory surface finishing takes place in a work bowl or trough is placed on coil springs. The vibratory energy is induced by a special vibratory motor that is mounted on the bowl or trough. The vibration creates the typical relative movement of media against parts.
  • Vibratory finishing can be used for all metals, many plastics, ceramics, rubber, wood, stone and glass and can help to achieve a wide range of objectives.
  • The continuous feeding of water and compound, such as soap, supports the finishing process.
  • Excellent results can be obtained for highly delicate and small components as well as for larger mass made and robust components.

Typical Applications Include

  • General deburring.
  • Heavy duty radiusing (edge breaking).
  • Surface smoothing.
  • Polishing.
  • De-greasing.
  • Surface cleaning.
  • Pickling, descaling, de-rusting.

pdf icon Print / Download Rosler R180/530 TE-30 'Super Speed' Minor Vibratory Trough Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
