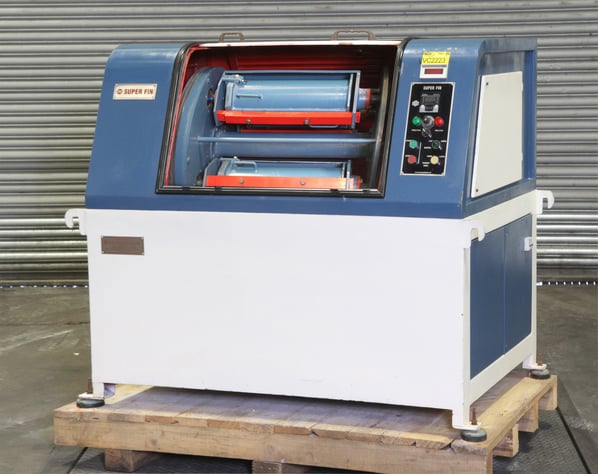

S.M. Systems High Energy Horizontal Barrel Tumbling Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
VC2223
Manufacturer
S.M. Systems
Model
Super fin SF 30
Condition
From a working environment, Excellent Condition, Current Model
Capacity
4 x 7.5 Litre Barrel - 135 dia x 490 mm
Type
Centrifugal Finishing Machine
Other Info
Infinitely Controllable Variable Speed
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
690
External Dimensions (WxDxH mm) [?]
1510 x 1060 x 1290
Delivery
Your delivery options

Description

Super Fin centrifugal finishing is a unique high energy mass finishing process. In this machine, four barrels are mounted on the periphery of the rotating turret. The turret rotates in one direction and the four barrels in the opposite thus creating a high energy polishing/barrelling action (Harperizer turret motion imparting a high amplitude action).

As the turret rotates along its axis at high speed, centrifugal force is generated inside the barrels. These barrels are also rotated along their own axis in the  opposite direction.

Each barrel contains media, finishing compound, water and parts to be finished.

Due to the rotation of the turret & barrel, media inside barrel rub against the parts under pressure. The high pressure sliding/rubbing action of media performs the surface finishing of the parts and reduces finishing time to just a few minutes from many hours.

SUPER FIN is ideally suited for high quality finishing. It can process even fragile & delicate parts without any distortion.

In this type of Super Fin barrels are of detachable type. Barrels are removed from the machine for loading & unloading of parts & media.

By keeping one set of spare barrels, the idle time of the machine during unloading/loading can be minimised and so the output from the machine can be maximized.

The barrel rotation axis is straight, the turret & barrel rotation speed (RPM) & can be made variable by the VSD (variable Speed Drive).

 Features

  • I Time XTM-773 process timer.
  • DPM-01 Digital display.
  • Variable speed controller, Delta VFD-M.
  • 4 Barrels of 7.5 litres
  • Total capacity 30 litres.
  • Each barrel 135 dia x 490 mm
  • Belt driven
  • Full variable speed operator manual.
  • 2.2kW  // 3Hp

VA2187J is an ideal sorting table that can be used with this product.

pdf icon Print / Download S.M. Systems High Energy Horizontal Barrel Tumbling Machine Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
