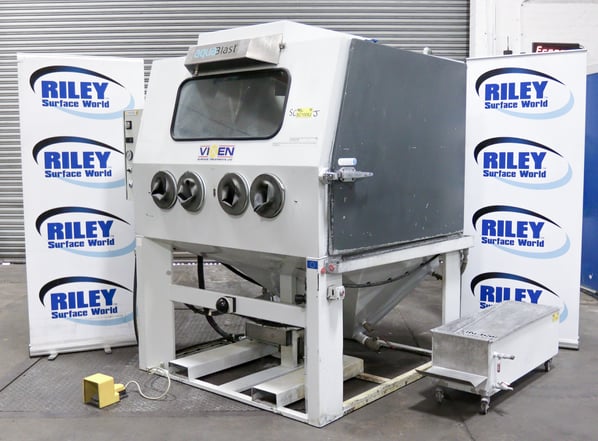

Vixen Surface Treatments Aquablast 1515 Twin Pump 4 Gun Heavy Duty Wet Blasting Cabinet

Stock No
SC1008J
Manufacturer
Vixen Surface Treatments
Model
AB1515 Aquablast
Year of Manufacture
2011
Serial
347
Condition
Excellent Condition
Work Envelope (WxDxH mm) [?]
Ø1350mm Powered table x 700mm height.
Work Handling Method
Semi Automatic with Powered Rotary Table
Other Info
Variable Speed Powered Rotary Turntable
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
700
External Dimensions (WxDxH mm) [?]
1890 x 1800 x 2140
Delivery
Your delivery options

Description

The Aquablast 1515 Wet Blasting Machine is designed by Vixen to simultaneously degrease and blast multiple components.

The machine is a wet blasting machine with a filtration system and powered turntable.

  • The process cleans by flow, and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.
  • The water/media slurry is contained within the wet blasting cabinet sump.
  • Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hoses located inside the wet blasting machine.
  • Compressed air is added to the blast nozzle to accelerate the slurry and create the cleaning effect.
  • After contact with the component, the slurry then drains back into the sump creating a re-circulating system.
  • Fine broken down media and other contaminants are fed via an overflow to a sedimentation filter located at the rear of the wet blasting machine.
  • New Model Vixen Aqua blast cabinet used for the cleaning, degreasing and removal of debris from workpieces.
  • An all stainless steel constructed blast cabinet with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. Used media and other contaminants are removed via overflow

Includes:

  • Water wash gun drain tank.
  • Single right hand side door.
  • Variable speed, powered rotary turn table.
  • 3 phase media/water circulation pump
  • 3kW, 240 Volt sump heater.
  • Knee operated emergency stop.
  • Interlocked door.
  • Pressure gauge.
  • 3 off Internal Lights.
  • Floor pedal gun actuation.
  • 4 kW media blast pump mounted directly into the sump.
  • 3 off Tungsten carbide blast nozzles.
  • Front viewing window with internal wash/wipe
  • 150 litre sump capacity.

Service Requirements

  • Electrical supply - 415v 3 Phase + Neutral
  • Air supply - 7 bar (100psi @ 40cfm)
  • Air operating range - 2-6 bar (30-80psi)
  • Water supply - 1/2" BSP
  • Drain floor level - Approx 10 litres/min

pdf icon Print / Download Vixen Surface Treatments Aquablast 1515 Twin Pump 4 Gun Heavy Duty Wet Blasting Cabinet Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
