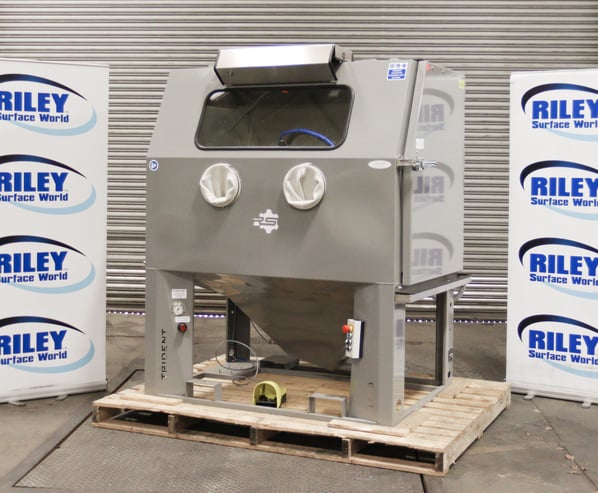

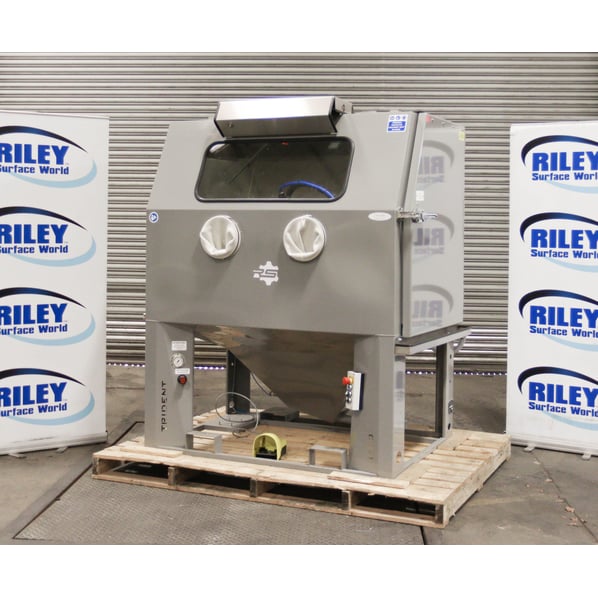

Riley Heavy Duty 1500 Stainless Steel Wet Blast

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Condition
Brand New, Unused, Current Model
Buy Now Add to Quote Contact Us

Finance available for variable duration and just the VAT value as a deposit.
Terms & Conditions Apply [?]

Get a Quote >

Stock No
SC1014
Manufacturer
Riley
Model
Wet Blast 1500
Year of Manufacture
2023
Serial
WB1500/0243
Condition
Brand New, Unused, Current Model
Work Envelope (WxDxH mm) [?]
1480 x 1080 x 950
Other Info
5 Year Cabinet Warranty
Weight (kgs)
364
External Dimensions (WxDxH mm) [?]
1650 x 1500 x 2000
Delivery
Your delivery options

Description

Rileys "Wet Blast" wet blasting cabinet is designed to degrease and blast multiple components simultaneously.

The process cleans by flow and not impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and extending the life of the blast media.

These are all 304 stainless steel constructed blast cabinets with an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. These features provide extra reliability, life and lower servicing costs.

The pump bodies have been specially designed for minimal wear and longevity due to the combination of superior design and materials. They reflect the abrasive away from the surface of the pump thus drastically lengthening the life of the pump body.
In the unlikely event that the pump requires replacement, its price is a fraction of a standard pump.

A typical process is as follows:

  1. The water/media slurry is contained within the wet blasting cabinet sump.
  2. Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hose located inside the wet blasting machine.
  3. Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
  4. After contact with the component, the slurry then drains back into the sump creating a re-circulating system.

Unbeatable Warranty

This blast cabinets include a massive 5 Year warranty on the stainless steel construction.

Electrical, pneumatic and general parts include a 2 year warranty and a 1 year warranty on submersible pump parts.

Features & Benefits

Riley Wet Blast Machines come with an array of standard features:

  • Constructed from high quality 2mm 304 stainless steel for a longer service life
  • Fully powder coated in grey or white for easier cleaning and maintenance and corrosion resistance
  • Large front viewing window for excellent operator visibility
  • Automatic windscreen wiper and rinse which is activated with the foot pedal
  • Four anti-shadow LED lights for operator visibility
  • Right hand side door with double media catch trays
  • Media recirculating pinch valve to restrict reusable media going to waste
  • Door open safety switch for operator safety
  • Light weight nylon gun. All nozzles are silicone carbide inserts with an aluminium casing
  • Component wash off gun for a quick and easy rinse
  • Air blow off gun to dry off components
  • Lined, heavy duty, rubber gauntlets for operator comfort and safety (Size 10, 66cm, Level 4 abrasive resistance)
  • Antistatic high tensile shot blast hose 12 bar 120psi max, 19mm inner diameter
  • Pressure regulator with gauge for fine adjustment to blasting pressure
  • Easy reach control panel with large emergency stop button
  • Rear mounted pump.
  • Valve regulator mounted outside the leg to make maintenance and diagnosis easier
  • Plastic sedimentation tank
  • 3Kw thermostatically controlled sump heater to aid de-greasing with ON/OFF switch
  • 2.2kW media blast pump mounted directly into the sump
  • Submersible high-grade polyurethane slurry pump system (pump body,  impellor,  stirring nozzle) for longer service life
  • Open loop system as standard, plumbed into your water supply

Stainless Steel Wet Blast Features

Service Requirements

  • Electrical supply: 415v 3 Phase + Neutral
  • Air supply: 12mm (1/2”) nozzle: 35-45 CFM @ 60psi (Standard)
  • Air operating range 2-6 bar (30-80psi)
  • Water Supply: 1/2" BSP
  • Drain Floor Level: Approx 10 Litres/min
  • Ventilation 4" / 110mm Duct to outside atmosphere
  • Noise Level: Blasting at 60 psi 75 dBA. Blasting an object 80 dBA

pdf icon Print / Download Riley Heavy Duty 1500 Stainless Steel Wet Blast Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
