Fan Engineering (Midlands) Ltd. Large Capacity Multivane Fan for Heating / Ventilation Applications

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
FC134S
Manufacturer
Fan Engineering (Midlands) Ltd.
Model
Multivane Forward Curved
Year of Manufacture
2017
Serial
041053
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
c. 20000 cfm // 33900M3/Hr
Filter Area ft² / m²
Multiple mixed filter cassettes
Other Info
Belt Driven Via 11kW /15Hp Motor
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1600 x 1450 x 1640
Delivery
Your delivery options

Description

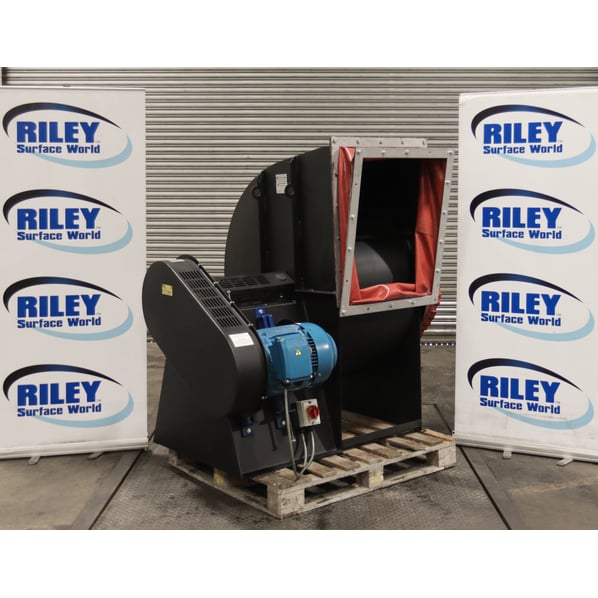

A Multivane fan with an 11kW (15Hp) motor with a belt drive. Multivane forward curved fans are designed primarily for heating & ventilating applications. They handle clean air, have medium peak efficiency and an overloading power characteristic. An filter housing with 4 double filter plates complete this package.

Overview of Centrifugal Impellor Fan function

The Centrifugal Impeller Fan moves air from its centre outwards and to the side. As the fan rotates, a pressure difference is built up on the impeller blades, this is because the impeller fan blades push air outwards, pushing the air outwards in a radial direction. On the concave of the impeller blade, a negative pressure is created as the fan rotates this draws air pressure into the space between the fan blades.

The centrifugal fan unit is driven by an electric motor. The motor spins the impeller, which draws air through its centre and outwards to the sides. The way in which it moves air to the side depends on the style of the impeller, this is multi-vane version (sometimes referred to as forward curved) which move large amounts of air at a low pressure (high volume – low pressure).

What is the Difference Between Axial and (Radial) Centrifugal Fans?

Axial fans move air in only one direction, such as in a straight ducting or through a wall, and are used for basic applications such as roof extraction, extraction through a wall or low pressure ducting application (even though there are some higher pressure applications available).

Centrifugal fans offer a wider range of applications due to the amount of impeller types and typically send the air in a specific direction at any required angle.

Specification

  • Inlet diameter: 800mm.
  • Outlet flange: 680 x 860mm.
  • Anti noise / Vibration mounting feet.
  • 11kW  //  14.75Hp Motor
  • Belt driven
  • Galvanised filter housing with 4 double filter plates



pdf icon Print / Download Fan Engineering (Midlands) Ltd. Large Capacity Multivane Fan for Heating / Ventilation Applications Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
