Fan Engineering (Midlands) Ltd. 5.5kw Fan with Impellor

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
FD143
Manufacturer
Fan Engineering (Midlands) Ltd.
Model
Multivane Plug Fan
Year of Manufacture
c.2019
Serial
035819
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
TBC
Filter Area ft² / m²
N/A
Other Info
Direct Drive, Plate Mounted.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
Approx.75 Kg's
Delivery
Your delivery options

Description

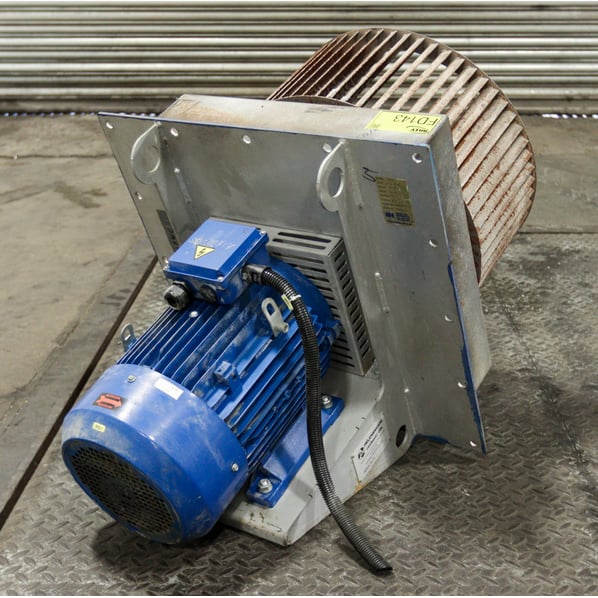

A Multivane plug fan with a 5.5kW (7.3Hp) motor mounted into a fixing plate. Direct drive, Ideal for air circulation within a ducting set up or other application where air circulation is required.

Originally designed for use in an industrial air circulated coated / stoving oven.

Overview of Centrifugal Impellor Fan function

The Centrifugal Impeller Fan moves air from its centre outwards and to the side. As the fan rotates, a pressure difference is built up on the impeller blades, this is because the impeller fan blades push air outwards, pushing the air outwards in a radial direction. On the concave of the impeller blade, a negative pressure is created as the fan rotates this draws air pressure into the space between the fan blades.

The centrifugal fan unit is driven by an electric motor. The motor spins the impeller, which draws air through its centre and outwards to the sides. The way in which it moves air to the side depends on the style of the impeller, this is  Multi-vane version (sometimes referred to as forward curved) which move large amounts of air at a low pressure (High volume – Low pressure)

Very little use so sold mechanically and electrically in full working order.

pdf icon Print / Download Fan Engineering (Midlands) Ltd. 5.5kw Fan with Impellor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
