Machines & equipment for sale

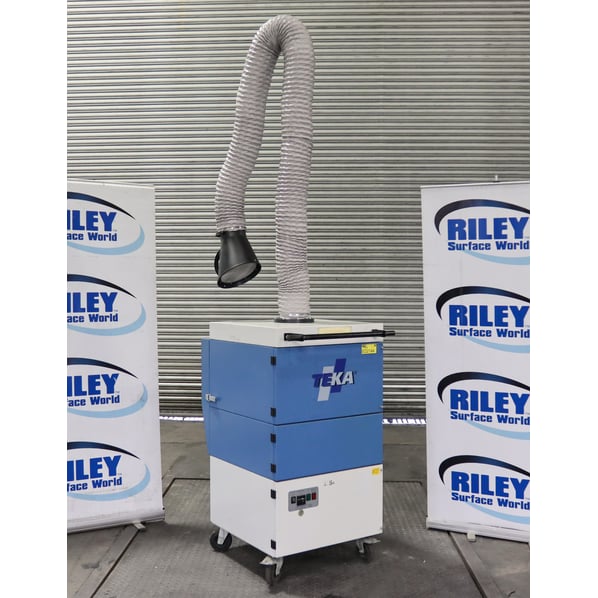

Teka Mobile Dust Extraction Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
ED2144
Manufacturer
Teka
Model
Strongmaster BIA
Year of Manufacture
2003
Serial
1819500101
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
1766//3000 @ 2500Pa
Filter Area ft² / m²
353/10
Other Info
New ducting to suit arm will be supplied
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
130
External Dimensions (WxDxH mm) [?]
660 x 780 x 2600 (max)
Delivery
Your delivery options

Description

The Strongmaster BIA mobile extraction unit is manufactured for the welding industry as a portable solution for the removal of welding fumes from the environment.

The filter unit serves to suck off and filter polluted air (according to the intended use). The air is purified on the surface of the filter cartridge in the filter section of the unit. The separated dust is collected in a dust collecting tank and an automatic filter monitoring system indicates when a cleaning or a replacement of the filter is required.

The purified air is led back into the working room via an exhaust air grille.

Features

  • Class W 3 length NW 4m
  • 150mm diameter suction hose with internal joints
  • Cartridge filter type: UPF
  • Manual cleaning
  • Motor power: 1.1kW
  • 240vac
  • 6.4amps
  • Max static pressure: 2500pa

The missing the hose and pick-up head to be supplied with the machine.

Former Standard Aerospace

These well-maintained machines have come straight from an aircraft engine overhaul facility in the UK.
Operated by a global aviation group Standard Aerospace this machinery is well maintained, high-quality and available now from stock out of our warehouse.



pdf icon Print / Download Teka Mobile Dust Extraction Unit Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
