Machines & equipment for sale

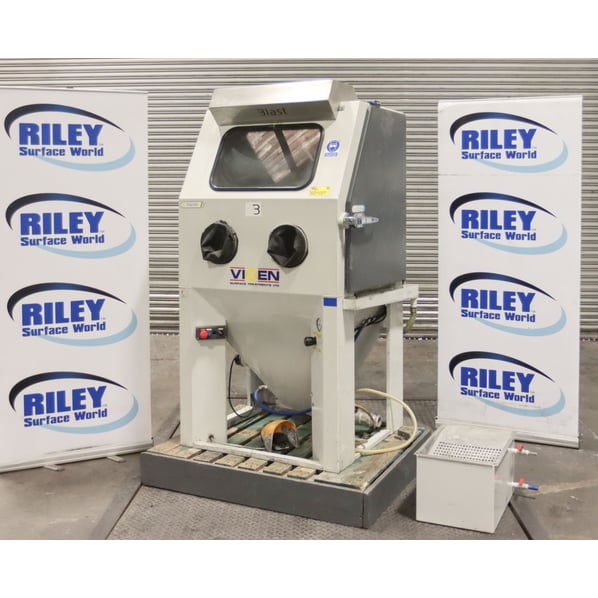

Vixen Surface Treatments Aquablast 915 Wet Blaster

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SD1027
Manufacturer
Vixen Surface Treatments
Model
AB915
Year of Manufacture
2003
Serial
039
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
900 x 700 x 400 tapering to 800mm Max.
Work Handling Method
Manual
Other Info
Degrease & Blast Multiple Parts Together
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
TBC
External Dimensions (WxDxH mm) [?]
1000 x 1200 x 2000mm
Delivery
Your delivery options

Description

The Aquablast 915 wet blasting machine is designed by Vixen to simultaneously degrease and blast multiple components.

The process cleans by flow and not by impact, producing a 'soft' finish. The water acts as a lubricant, avoiding media impregnation and also extending the life of the blast media.

The Typical Process is as Follows:

  • The water/media slurry is contained within the wet blasting cabinet sump.
  • Delivery of the slurry to the manual blast nozzle is via a glandless polyurethane pump and associated hoses located inside the wet blasting machine.
  • Compressed air is added at the blast nozzle to accelerate the slurry and create the cleaning effect.
  • After contact with the component, the slurry then drains back into the sump creating a re-circulating system.
  • Fine broken down media and other contaminants are fed via an overflow to a sedimentation filter located at the rear of the wet blasting machine.

A current model from Vixen, the Aquablast cabinet is used for the cleaning, degreasing and removal of debris from workpieces.

All constructed of stainless steel , the cabinet also features an internally submersed glandless polyurethane pump and tungsten carbide tipped blast nozzle. Used media and other contaminants are removed via overflow

Includes

  • Water wash gun drain tank to the rear.
  • Single right hand side door.
  • 3 phase media/water circulation pump.
  • Pressure gauge.
  • Internal light.
  • Floor pedal gun actuation.
  • 2.2kW media blast pump mounted directly into the sump.
  • 3kW thermostatically controlled sump water heater for cleaning application.
  • Front viewing window with internal wash/wipe.

Service Requirements

  • Electrical supply - 415v 3 phase + neutral
  • Air supply - 7 bar (100psi @ 40cfm)
  • Air operating range - 2-6 bar (30-80psi)
  • Water supply - 1/2" BSP
  • Drain floor level approx. - 10 litres/min
  • Ventilation - 4" / 110mm duct to outside atmosphere

pdf icon Print / Download Vixen Surface Treatments Aquablast 915 Wet Blaster Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
