Machines & equipment for sale

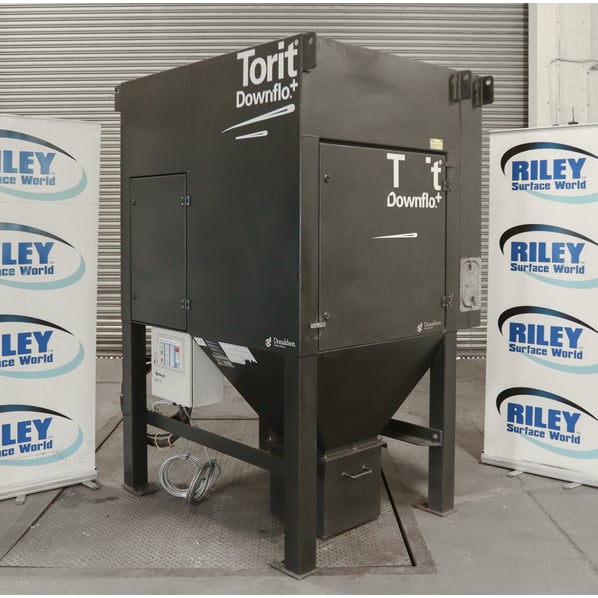

Donaldson Torit (DCE) DF+ 4-SPRK Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
ED2173
Manufacturer
Donaldson Torit (DCE)
Model
DF+4SPRK
Year of Manufacture
2002
Serial
53101297
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
2500//4250
Filter Area ft² / m²
760//75
Other Info
Low Height Dust Extractor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
800kg
External Dimensions (WxDxH mm) [?]
1300 x 1600 x 2300
Delivery
Your delivery options

Description

The Donaldson DF+4 SPRK version provides a spark trap, allowing the unit to be used with hot dust from such applications as flame spraying, fettling, metal linishing, laser and plasma cutting and foundry extraction.

 The dusts are filtered the cleaned into a base mounted dust collection tray.

Features Include

  • Lower initial cost per cubic foot of air per minute (cfm).
  • Higher efficiency - cleaner air.
  • Reinforced frame with roof mounted explosion relief panel for use with ATEX rated dusts.
  • Integral 3.0kW // 4Hp fan unit.
  • Secondary silencer box for reduced noise operation.
  • Lower pressure drop—greater energy savings.
  • Fewer filter changeouts.
  • Reduced filter disposal cost.
  • Easy system setup.
  • Less maintenance.
  • Easy to use, quick-release handle provide easy cover removal and faster filter access.
  • Compact, smaller footprints for applications that require maximum cleaning efficiency in even smaller spaces.
  • Powerful proprietary ExtraLife filter cleaning system averages up to 30 percent increase in pulse cleaning energy for unmatched cleaning ability.

Specifications

  • 16 amp supply. 3.0kw. // 4.0Hp 6.6 - 10A O/L
  • 230 VAC Control - DOL fan
  • 24 volt AC pulse control voltage

pdf icon Print / Download Donaldson Torit (DCE) DF+ 4-SPRK Dust Extractor Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
