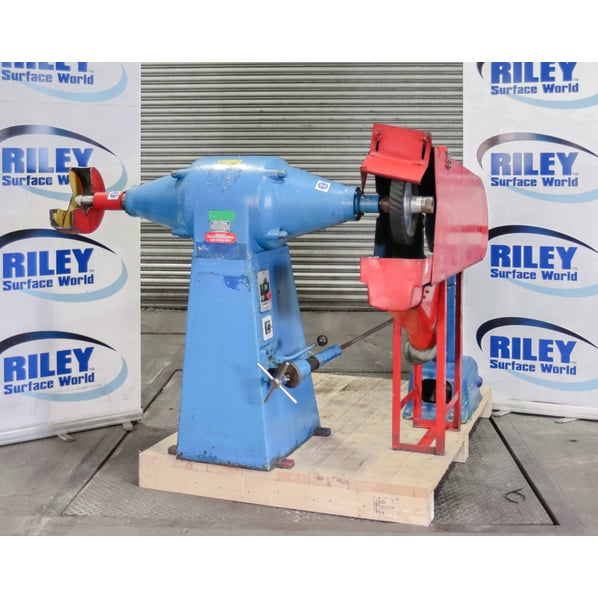

Morrisflex Double Ended Twin Speed Twin Drive Polisher/ Linisher

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
PD1199
Manufacturer
Morrisflex
Model
403 Twin Speed Twin Drive
Serial
N7087L
Condition
From a working environment, Good Condition
R.P.M.
1480 / 2900 rpm
Hp/Kw
3+1.5hp // 2.2 + 1.1kW
Other Info
Including Back Stand Idler.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
125 kg
External Dimensions (WxDxH mm) [?]
1625 x 750 x 1220 mm (+ backstand idler)
Delivery
Your delivery options

Description

The Morrisflex Model 403 is a heavy duty independently controlled dual speed pedestal mounted polishing machine that is equipped with 4 heavy duty bearings for smooth running and a long service life.

This traditionally built heavy duty second hand Morrisflex model 403 Polishing lathe is predominately used with polishing mops, buffs and bobs, but can also be used with a wide range of rotary abrasive tools, ie abrasive impregnated nylon wheels, abrasive brushes, flap wheels, deburring wheels, and wire wheels etc.

The body of the machine is manufactured from cast aluminium keeping the weight down and offering excellent heat dissipation. The installed twin spindles are powered by dual wound robust high torque motors offering both speeds of 1500 and 2800 rpm, making them suitable for a wide range of applications and materials.

At slow speed the polisher is suitable for polishing plastics, acrylics and other soft material or with larger mops for use on this sheet materials and stainless steel. The slow speed option also alows contact wheels to be fitted to the spindles, for the use of abrasive belt linishing and grinding with an optional attachment fitted.  At higher speeds small mops and bobs can be used for general polishing applications.

Only Used in the Medical Industry

This plant is one of several machines acquired during a recent site clearance of a company supplying medical equipment.

The maintenance and servicing was conducted in line with the medical industries requirements. Any faults were corrected immediately working to the highest standards.



Benefits

4 bearing design guarantees long life and vibration free running greatly reducing the risk of vibration related industrial conditions such as white finger.

Independent ends reduces power consumption whilst being used by a single operator and allows two operators to work simultaneously and independently of each other.

Features and specifications.

  • Motor sizes: 3hp 2.2KW per motor.
  • Heavy duty 4 bearing spindles.
  • 1480 / 2900 rpm.
  • Contact wheel/buff diameters: 250 mm with taper spindle ends or 350 mm with parallel ends at 2800rpm.
  • DC braking system fitted with emergency stop activation.
  • Back stand idler / linishing and belt grinding attachment Included.

Optional extra's

  • Parallel or tapered spindles ends.
  • Variable speed motor drives.
  • Dust extractor.
  • Dust collection hoods.

pdf icon Print / Download Morrisflex Double Ended Twin Speed Twin Drive Polisher/ Linisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
