Machines & equipment for sale

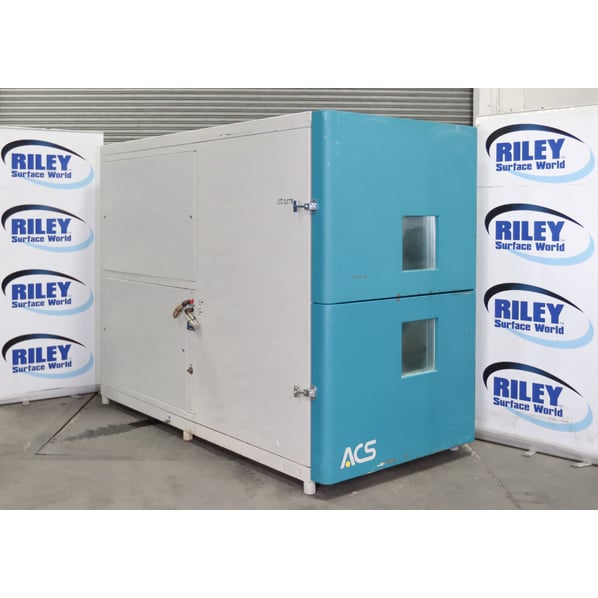

ACS Angelantoni Industrie SpA Thermal Shock Testing Chamber

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
OD2578
Manufacturer
ACS Angelantoni Industrie SpA
Model
CST 84 2T
Year of Manufacture
2001
Serial
8527
Condition
From a working environment, Excellent Condition
Internal Size (WxDxH mm) [?]
330 x 330 x 475 Basket Capacity
Max Temp
-80°C to 220°C
Other Info
R404a and R23 Refrigerant Gases
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1350 x 2560 x 2000mm
Delivery
Your delivery options

Description

A thermal shock twin chamber testing machine used for verifying the reliability of electronic materials, industrial or pharmaceutical products that are subject to temperature variations.

Simulated environmental tests are used in many industrial fields to meet specific requirements defined by international standards. By subjecting the specimen to tests, it is possible to improve reliability and reduce the risks associated with the development of new products.

Climatic chambers for thermal shock tests are used to subject the specimen to strong shocks by passing it suddenly and repeatedly from a hot temperature zone to a cold one. The specimen can cool or heat at different rates at different points, depending on the material. If exposure to repeated cycles cause large expansions and contractions in volume, the material could undergo strong mechanical stresses and sometimes break.

The Standards this Chamber Meets Include:

  • MIL-STD-883H, method 1010.8, test conditions A, B, C, D, F.
  • MIL-STD-810G (*), method 503.5, procedures I-B, I-C, I-D.
  • IEC 60068-2-14 test Na.

(*) with dedicated SW

Specification

  • Temperature range from -80°C to 220°C.
  • Refrigerate gases R404a and R23.
  • Twin chambers.
  • Easy to operate with operator manual included.
  • RS232 serial port for connection to PC.
  • Optional nitrogen cooling.
  • Condenser water inlet/outlet.
  • Door safety switches.
  • Door viewing windows.

This unit was serviced on a regular basis by ETS and this company can provide installation and commissioning if required. Full details available on request.

pdf icon Print / Download ACS Angelantoni Industrie SpA Thermal Shock Testing Chamber Datasheet

Additional files

Brochure

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
