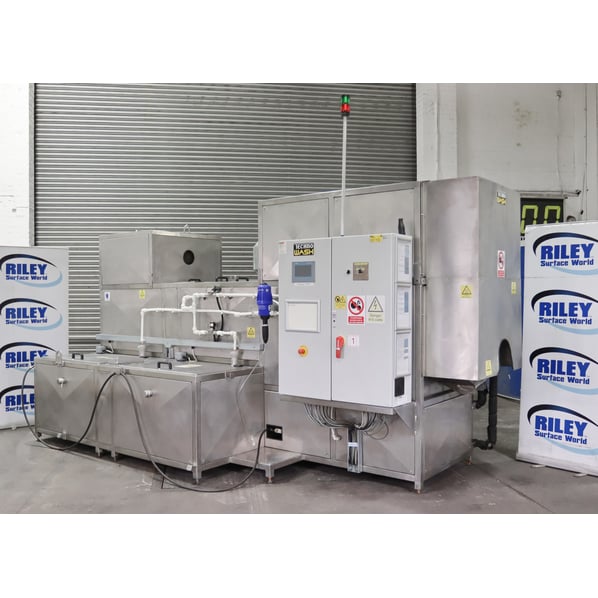

Technowash Techline SD600/3 Rotary Drum, 4 Stage Component Cleaner

Direct From Site Clearance

Normal Retail Price [?]
£ Login or Register for price
Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
Turned Parts Post Processing Machinery
Condition
From a working environment, Good Condition, Current Model
Buy Now Add to Quote Book Appointment
Stock No
DE1552
Manufacturer
Technowash
Model
Techline SD600/3
Year of Manufacture
2016
Serial
51340
Condition
From a working environment, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
Ø600mm x 4400mm approx.
Process Stages
4 Stage, Immersion, Wash, Rinse, Hot Dry
Other Info
Spray Lance & Coalescing Filter.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
2200
External Dimensions (WxDxH mm) [?]
4400 x 2500 x 2350mm
Delivery
Your delivery options

Description

The Technowash SD600/3 is specifically designed for the continuous processing of high volumes of component parts, where more conventional batch type degreasing systems would struggle to achieve the throughput rate required.

The Technowash SD 600/3 houses a rotating drum which has an 'Archimedes' continuous screw fitted to the internal wall. As the drum rotates, the turning of the screw moves the parts forwards along its length. Components pass through four stages comprising of immersion, spray wash, rinse & dry sequence.

The rotary spiral drum system with variable speed control allows the operator to control throughput speeds and ensure that the parts being processed remain in the various process stages the right length of time to achieve the desired result.

Features Include:

  • 100% stainless steel construction
  • Rotary spiral drum dimension with a 600mm diameter
  • Full 35mm thick thermal & sound insulation
  • Low level fluid protection
  • Auto fill
  • Filtered hot air dry to prevent any environmental issues
  • Programmable digital controller
  • Variable speed control, Wash and rinse tank temperature control
  • External stainless steel cartridge filters with pressure gauges. (200µ filters)
  • External coalescing filter
  • Gravity fed effluent drain taps hot wash and dry cycles
  • Machine mounted control panel
  • Separate wash and rinse tanks both with three heating elements
  • Bifurcated steam extraction
  • Automated detergent dosing system
  • Debris collection strainers in each tank
  • Full machine bund tray.

Tanks

Tank 1 - Wash

  • Tank size - 1000mm x 1000mm x 700mm (400 litres)
  • Fluid Depth - 400mm

Tank 2 Rinse,

  • Tank size - 1000mm x 1000mm x 700mm (400 litres)
  • Fluid Depth - 400mm

Technical Details

  • Heavy duty, quality chain driven drum
  • Wash filter -  Spectrum SBH-SPC-1-2-2-GP-ML (200µ filtration)
  • Rinse filter -  Spectrum SBH-SPC-1-2-2-GP-ML (200µ filtration)
  • Forced steam extraction with bifurcated fan
  • Current settings - 65°C wash, 50°C rinse, 80°C hot air dry
  • Electrics - 415V , 3PH + E & 160A

pdf icon Print / Download Technowash Techline SD600/3 Rotary Drum, 4 Stage Component Cleaner Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
