Balco Engineering Ltd Manual Electropolish Line

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Decommissioning,
Moving & Loading Contribution [?]
£ 4,250 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Tecomet Medical Industry Vibratory & Electropolishing Finishing Lines
Condition
From a working environment, Seen working by RSW, Good Condition
Location
Sheffield, UK
Buy Now Add to Quote Book Appointment
Stock No
TEC300
Manufacturer
Balco Engineering Ltd
Model
Manual Electropolish
Year of Manufacture
2013
Serial
MS-0055
Condition
From a working environment, Seen working by RSW, Good Condition
Work Envelope (WxDxH mm) [?]
200/320/360/390 x 500 x 500
Process Stages
6
Other Info
Wall mounted control cabinet containing
Location
Sheffield, UK
External Dimensions (WxDxH mm) [?]
700 x 3140 x 2180mm
Delivery
Your delivery options

Description

An ideal opportunity to acquire a manual Electropolishing Line installed by Balco Engineering Limited in 2013 and subject to an upgrade by them in 2016.The line is utilised in the production of medical implants.

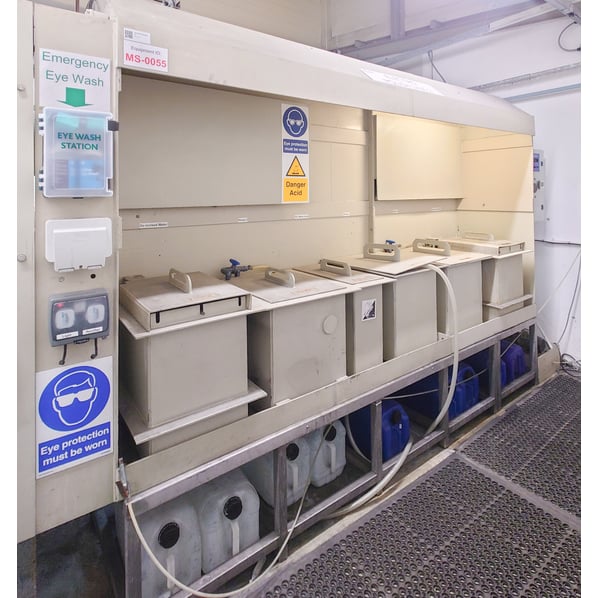

The plant comprises a series of tanks in an enclosed extracted canopy as detailed on the process schedule attached, arranged in a straight line with the work is carried from tank to tank manually by the operator.

Approximate plant dimensions 3140mm long x 700mm wide x 2180mm.

Additional Ancillary Equipment

  • Rectifier & pump (LxW) - 500mm x 700mm
  • Wall mounted control panel.

The line is fully consoled in polypropylene sheet and the tanks are located inside an integral PP bund with support stand to working height from factory floor level.

Specification of equipment

Tank No. 1 Process Electropolish

  • Temperature: 60°C
  • 1 Off single compartment tank of internal size (complete with top flange) - 360mm x 500mm x 500mm
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume extraction canopy
  • Lift off tank lid
  • 1 Set electric heating equipment complete with protection and control
  • 1 Set process temperature control
  • 1 Set solution circulation pump complete with suction and delivery pipework
  • 1 Off anode bar
  • 2 Off cathode bars fitted with stainless steel cathode plates
  • 1 Off Balco rectifier 100 amps X 15 VDC

Tank No. 2 Process Rinse 1

  • Temperature: AMB
  • 1 Off double compartment tank of internal size (complete with top flange) - 390mm x 500mm x 500mm
  • Central division plate to form two 190mm wide compartments
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume Extraction Canopy
  • Lift off Tank Lid
  • 1 Off Water Inlet
  • 1 Off Rear Overflow to drain

Tank No. 3 Process Rinse 2

  • Temperature: AMB
  • 1 Off Single compartment tank of internal size (complete with top flange) - 360mm x 500mm x 500mm
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume extraction canopy
  • Lift off tank lid
  • 1 Off bottom water outlet
  • 1 Off wash off gun

Tank No. 4 Process Nitric Acid

  • Temperature: AMB
  • 1 Off single compartment tank of internal size (complete with top flange) - 200mm x 500mm x 500mm
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume extraction canopy
  • Lift off tank lid

Tank No. 5 Process Rinse 3

  • Temperature: AMB
  • 1 Off Double compartment tank of internal size (complete with top flange) - 390mm x 500mm x 500mm
  • Central division plate to form two 190mm wide compartments
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume extraction canopy
  • Lift off tank lid
  • 1 Off water inlet
  • 1 Off rear overflow to drain

Tank No. 6 Process Hot Rinse

  • Temperature: 60°C
  • 1 Off Single compartment tank of internal size(complete with top flange) -  360mm x 500mm x 500mm
  • The body of the tank is manufactured from polypropylene material

Tank is supplied with:

  • Fume extraction canopy
  • Lift off tank lid
  • 1 Set electric heating equipment complete with protection and control
  • 1 Set process temperature control
  • 1 Off work bar

Control Console

Wall mounted control cabinet containing two off electronic temperature controllers. Complete with contactors, circuit breakers and rail mounted terminal blocks.

Electrical Wiring

All electrical wiring between the central control console and field electrical items is installed in corrosion resistant PVC or galvanised-steel cable tray suitably supported.

Mechanical Services

One set mechanical services serving the previously described plant complete with all necessary supports and brackets.

Note - If some pipework cannot be chemically cleaned and decontaminated to the standard necessary it will not be shipped and will need replacement on reinstallation.

pdf icon Print / Download Balco Engineering Ltd Manual Electropolish Line Datasheet

Additional files

Process Schedule

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
