Machines & equipment for sale

Carbolite 300°C Nitrogen Purge Gas Tight Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OE2602
Manufacturer
Carbolite
Model
Gas Tight Oven
Year of Manufacture
1998
Serial
3-95-555
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
640 x 600 x 1170mm
Max Temp
300°C 6kW
Other Info
Nitrogen Purge Timer & Gauge
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
950 x 950 x 1800mm
Delivery
Your delivery options

Description

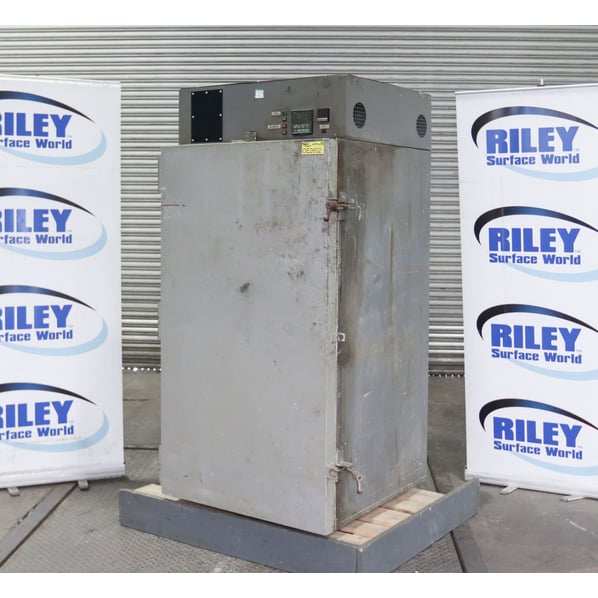

An electric Carbolite gas tight industrial oven with a nitrogen purge set up. This 300°C oven features a roof mounted air circulation fan, stainless steel interior with 7 shelf runner positions.

Nitrogen

Nitrogen is typically referred to as inert when it is to be used at temperatures below 1800°C. It displaces oxygen, so is ideal for use in applications where oxidation is undesirable.

Nitrogen is not a "noble" gas and, under specific conditions, can react with oxygen to form gases such as nitric oxide (NO) and nitrogen dioxide (NO₂). These are collectively referred to as NOx gases (the "x" referring to the number of oxygen atoms present in the compound).

Where an inert atmosphere is required, nitrogen is a cheaper alternative to argon, provided that the material being heat treated (or any subsequent by-products) will not react with it.

Advantages of Modified Atmospheres

Heat treating materials within a modified atmosphere ensures a controlled working environment, increased repeatability, and more consistent results.

Depending on the type of material processed and environment required, modified atmospheres can be used to either protect samples from oxidation during heat treatment, or actively promote reactions. Inert gases, such as argon (Ar) or nitrogen (N₂.), and reducing gases such as hydrogen (H₂), are used to prevent oxidation, whilst oxidising gases, such as oxygen (O₂.) or nitrous oxide (N₂O), are used to promote oxidation.

The choice of atmosphere is entirely dependent on the requirements of the heat treatment process.

Specifications

  • 415 Volts, 3 phase, 50 Hz
  • 6kW
  • Roof mounted air circulation fan
  • 7 Shelf runners
  • Paton gas flow meter
  • Purge timer
  • Eurotherm 93 overtemperature controller
  • 5 pin plug fitted

pdf icon Print / Download Carbolite 300°C Nitrogen Purge Gas Tight Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
