Machines & equipment for sale

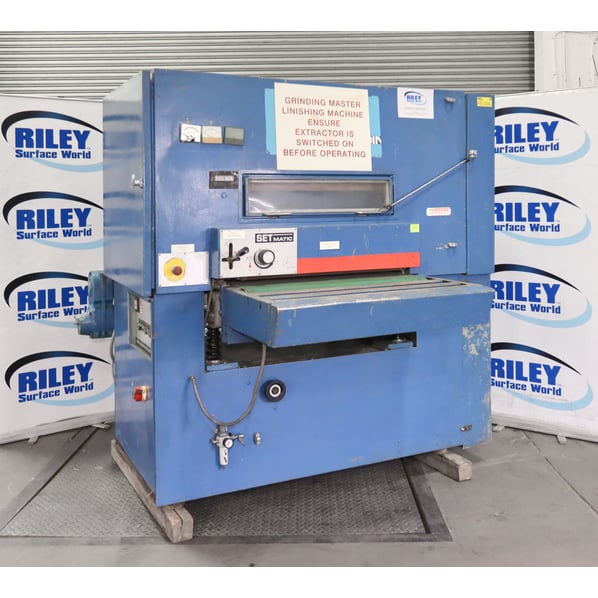

Grindingmaster Twin Head, Belt and Brush MCSB-900 Wide Belt Sander

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Condition
From a working environment, Good Condition
Contact Us
Stock No
PE1204J
Manufacturer
Grindingmaster
Model
MCSB-B-900
Serial
KA775-05
Condition
From a working environment, Good Condition
R.P.M.
Variable
Hp/Kw
15kW & 7.5kW
Other Info
Heavy Duty Through Feed Belt Grinder
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1555
External Dimensions (WxDxH mm) [?]
2030 x 1890 x 1910
Delivery
Your delivery options

Description

This pre owned Ellesco Grindingmaster is a premier industrial metal working multi finishing machine. The MCSB 900 is a 900mm wide belt dry working Grindingmaster that is equipped with powerful motors allowing it to process the toughest and heaviest jobs around. Set up with a belt and brush to produce superior finishes.


Typical Applications

  • Stock removal of multiple individual parts and sheet materials.
  • Sizing and finishing of parts and sheet materials.
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.
  • Grain finishing of any material.

Standard features

  • Centralised operator control panel.
  • Full 900mm working width.
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance.
  • Wide brush head fitted with polishing roller, these can be either a Scotchbrite roller or wire brush.
  • Conveyor bed on 4 heavy duty precision spindles.
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls.
  • Motorised, single point thickness setting.
  • Conveyor reverse for set-up.
  • Variable speed table motor.
  • Fixed/floating conveyor table.
  • Thickness readout scale.
  • Belt oscillation.
  • Front edge safety bump E stop.
  • Pneumatic tensioning.
  • Air actuated braking.
  • Load amp meter.
  • 415 Volts, 50 Hz, 3 phase.

Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

pdf icon Print / Download Grindingmaster Twin Head, Belt and Brush MCSB-900 Wide Belt Sander Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
