SNOL 1200°C - 1300°C Industrial Chamber Furnace Range

Stock No

NEW077

Manufacturer

SNOL

Model

SNOL 1200/1300

Internal Size (WxDxH mm) [?]

Various

Max Temp

1200°C - 1300°C

Delivery

Your delivery options

Description

These high accuracy electric furnaces are designed for professional engineers and made from high quality metal & thermal materials. Equipped with ceramic or heat resistant steel health plates, depending on the application. Suitable for high temperature processes such as hardening, normalising, stress relieving and other heat treatment processes up to 1300°C.

Available in a range of sizes and maximum temperatures of 1300°C, these furnaces can be used in scientific laboratories, educational institutions, medicine and industry.

SNOL - A Leading Thermal Engineering Manufacturer

SNOL is one of the leading laboratory furnace manufacturers in the world. The company is based in Lithuania with subsidiaries in Germany and Ukraine. Founded in 1960 SNOL and is part of the Baltic State's largest metal processing group, employing over 700 people. 90% of production is exported from Lithuania into 40 countries in Europe and worldwide.

Riley Surface World and SNOL is a unique partnership. It combines Europe’s finest industrial and laboratory oven manufacturer with a UK company renowned for its high levels of industry knowledge, service and technical support.

SNOL tool room furnaces are available from stock or by special order, depending on requirements for temperature, size and metal treatment process.

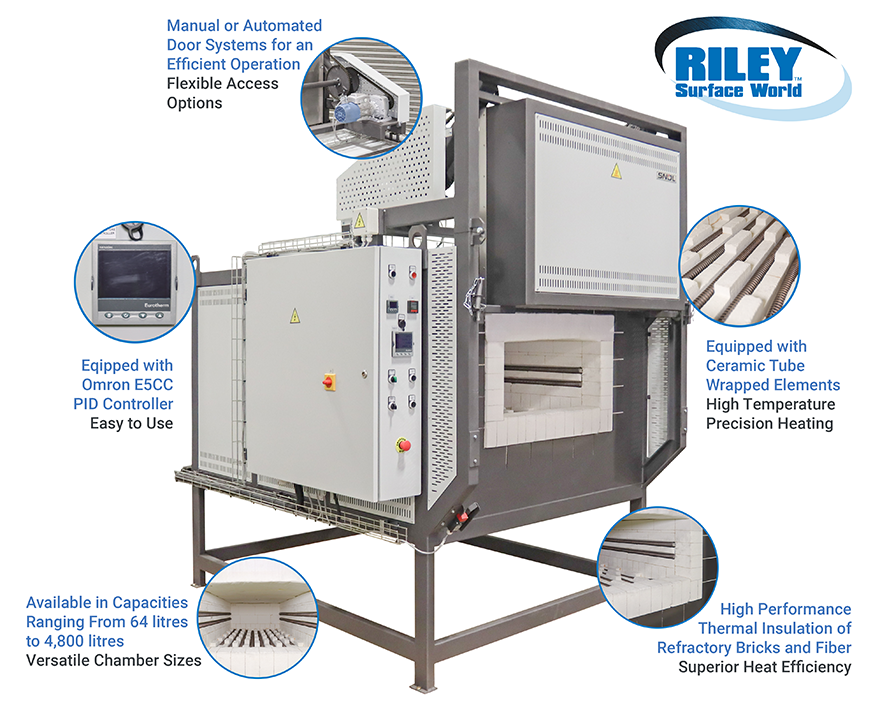

Features Include:

• 1200°C & 1300°C maximum operating temperature
• 64 - 4800 litre chamber volumes
• Thermal insulation made from refractory bricks and fibre
• Ceramic bottom plates
• Heating elements wrapped on ceramic tubes
• Vents for removal of escaping gases or smoke
• Door opening to left/right side (depending on model)
• External structure of grey powder painted metal sheeting
• Control panel on the left/right side
• Equipped with non-programmable PID controller Omron E5CC
• OTP (over temperature protection)
• SSR relay
• Door safety switch
• Low power consumption
• Short heating time
• High level of accuracy
• 1 year warranty

Available Options

• Manual door lifting
• Automated door lifting
• Removable hearth
• Controlled cooling
• Reinforced bottom
• Heat resistant metal hearth plate up to 1150 °C
• Vent on the top
• Digital timer
• Data recorder
• Data communication/USB
• Measurement system
• Stainless steel furnace exterior
• Build to AMS2750G standard
• Additional 1 year warranty

Available Sizes

Model	Temp	Size	Power	Internal (WxDxH)
SNOL 64/1200	1200°C	64 litres	15kW	400mm x 400mm x 400mm
SNOL 125/1200	1200°C	125 litres	25kW	500mm x 500mm x 500mm
SNOL 200/1200	1200°C	200 litres	30kW	500mm x 800mm x 500mm
SNOL 250/1200	1200°C	250 litres	30kW	500mm x 1000mm x 500mm
SNOL 360/1200	1200°C	360 litres	40kW	600mm x 1000mm x 600mm
SNOL 400/1200	1200°C	400 litres	45kW	700mm x 1000mm x 600mm
SNOL 500/1200	1200°C	500 litres	45kW	700mm x 1000mm x 700mm
SNOL 800/1200	1200°C	800 litres	50kW	900mm x 1000mm x 900mm
SNOL 970/1200	1200°C	970 litres	70kW	900mm x 1200mm x 900mm
SNOL 1000/1200	1200°C	1000 litres	70kW	1000mm x 1000mm x 1000mm
SNOL 1200/1200	1200°C	1200 litres	70kW	1000mm x 1200mm x 1000mm
SNOL 1500/1200	1200°C	1500 litres	85kW	1000mm x 1500mm x 1000mm
SNOL 2200/1200	1200°C	2200 litres	95kW	1000mm x 1500mm x 1500mm
SNOL 2500/1200	1200°C	2500 litres	120kW	1000mm x 1500mm x 1700mm
SNOL 3400/1200	1200°C	3400 litres	140kW	1000mm x 2000mm x 1700mm
SNOL 4000/1200	1200°C	4000 litres	160kW	1200mm x 2000mm x 1700mm
SNOL 4800/1200	1200°C	4800 litres	160kW	1200mm x 2000mm x 2000mm

Model	Temp	Size	Power	Internal (WxDxH)
SNOL 64/1300	1300°C	64 litres	25kW	400mm x 400mm x 400mm
SNOL 125/1300	1300°C	125 litres	30kW	500mm x 500mm x 500mm
SNOL 200/1300	1300°C	200 litres	35kW	500mm x 800mm x 500mm
SNOL 250/1300	1300°C	250 litres	35kW	500mm x 1000mm x 500mm
SNOL 360/1300	1300°C	360 litres	45kW	600mm x 1000mm x 600mm
SNOL 400/1300	1300°C	400 litres	50kW	700mm x 1000mm x 600mm
SNOL 500/1300	1300°C	500 litres	60kW	700mm x 1000mm x 700mm
SNOL 800/1300	1300°C	800 litres	60kW	900mm x 1000mm x 900mm
SNOL 970/1300	1300°C	970 litres	80kW	900mm x 1200mm x 900mm
SNOL 1000/1300	1300°C	1000 litres	80kW	1000mm x 1000 mm x 1000mm
SNOL 1200/1300	1300°C	1200 litres	90kW	1000mm x 1200 mm x 1000mm
SNOL 1500/1300	1300°C	1500 litres	90kW	1000mm x 1500mm x 1000mm
SNOL 2200/1300	1300°C	2200 litres	120kW	1000mm x 1500 mm x 1500mm
SNOL 2500/1300	1300°C	2500 litres	150kW	1000mm x 1500mm x 1700mm
SNOL 3400/1300	1300°C	3400 litres	180kW	1000mm x 2000mm x 1700mm
SNOL 4000/1300	1300°C	4000 litres	200kW	1200mm x 2000mm x 1700mm
SNOL 4800/1300	1300°C	4800 litres	200kW	1200mm x 2000mm x 2000mm

Are your furnace requirements outside our model parameters? Check out our custom build option for SNOL furnaces to deliver the perfect furnace for your application.

Fully Factory Assembled and Tested

The equipment is, fully factory tested and adjusted prior to shipment from the manufacturer. All safety interlocks are checked for proper operation and the equipment is operated at its maximum operating temperature for a test period. If a temperature uniformity profile test and certification is purchased, the profile test will be performed and documented prior to shipment.

Customers are invited and encouraged to visit our site to witness testing and sign off the equipment prior to shipment. During this visit, personnel are available to demonstrate, and answer any questions you may have concerning design, operation, and maintenance.

Print / Download SNOL 1200°C - 1300°C Industrial Chamber Furnace Range Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
